Same model may have multiple batches, images only for reference.

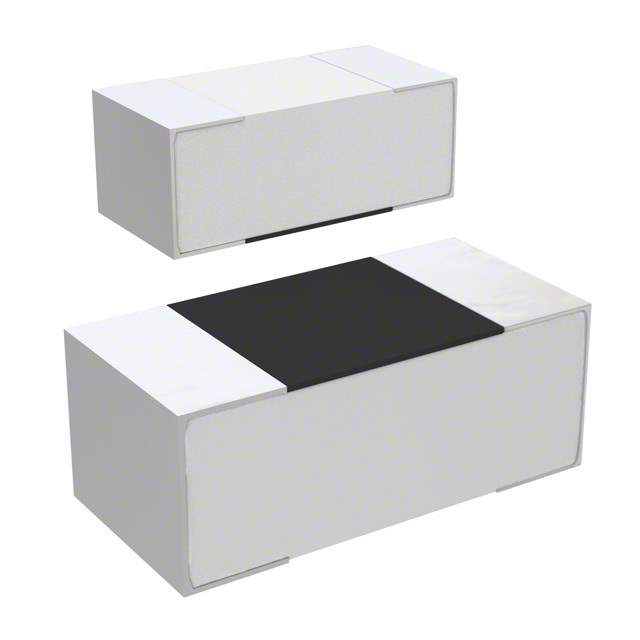

CRG0402F15K Real Image
Same model may have multiple batches, images only for reference.

CRG0402F15K

Part No CRG0402F15K
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 15K OHM 1% 1/16W 0402  /  15 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRG, Neohm
Package Tape & Reel (TR)
Resistance 15 kOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number CRG0402
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1-1676480-5-ND,1-1676480-5
Standard Package 20,000
Win Source Part Number 1136490-CRG0402F15K
Ultra Librarian 3D Model Ultra Librarian CRG0402F15K CAD Model

Description

The 1136490-CRG0402F15K is a thick film chip resistor with a resistance of 15 kOhms.

  • Part Number: 1136490-CRG0402F15K
  • Type: Thick Film Chip Resistor
  • Resistance: 15 kOhms
  • Mounting: Surface Mount
  • Power Rating: 0.063W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Package: 0402 (1005 Metric)
  • Packaging: Tape and Reel
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.016" (0.40mm)
  • Series: CRG, Neohm
