Products specifications

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF
Package Tape & Reel (TR) Cut Tape (CT)
Resistance 3.4 Ohms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351266-CPF0805B3R4E1
Ultra Librarian 3D Model Ultra Librarian CPF0805B3R4E1 CAD Model

Description

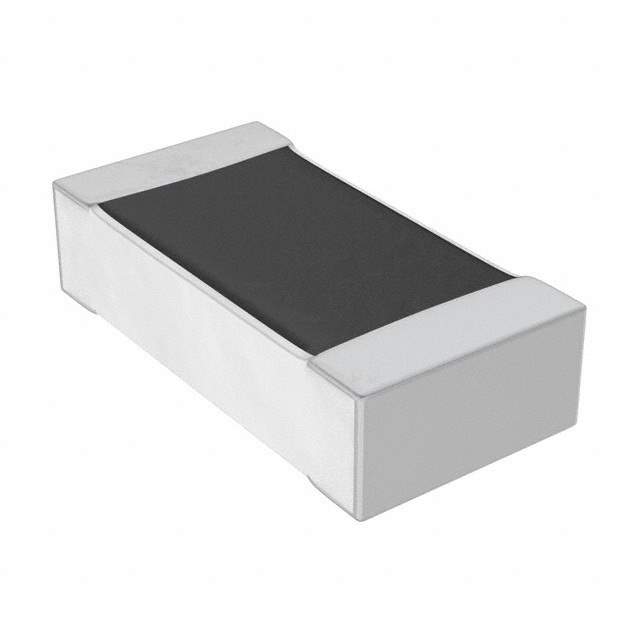

The TE Connectivity Passive Product CPF0805B3R4E1 is a chip resistor that is surface-mounted and has a size of 0.079" L x 0.049" W (2.00mm x 1.25mm).

  • Seated Height: 0.026" (0.65mm)
  • Standard Package: 1,000 pieces
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Composition: thin film
  • Terminations: two
  • Resistance: 3.4 Ohms
  • Power (Watts): 0.1W, 1/10W
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • Operating Temperature Range: -55°C ~ 155°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS: 8533.21.0030
