Same model may have multiple batches, images only for reference.

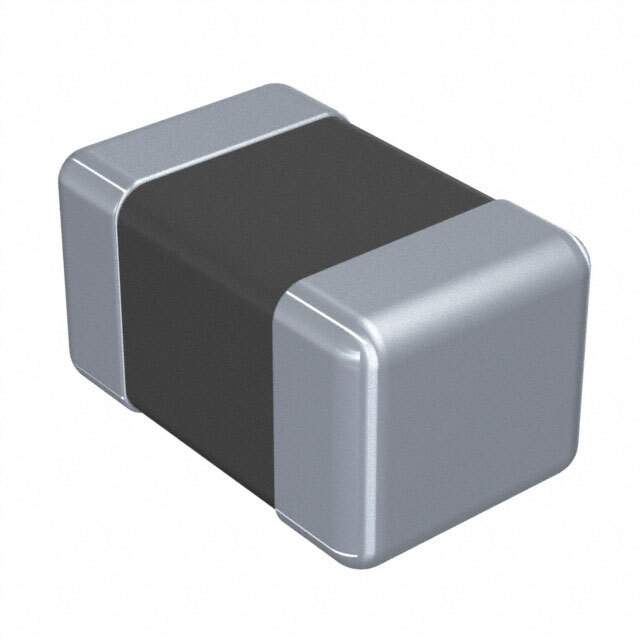

BMB2A0120AN4 Real Image
Same model may have multiple batches, images only for reference.

BMB2A0120AN4

Part No BMB2A0120AN4
Manufacturer TE Connectivity
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 120 OHM 0805 1LN / Ferrite Beads Multi-Layer 120Ohm 25% 100MHz 0.3A 0.3Ohm DCR 0805 T/R
Datasheet
BMB2A0120AN4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TE Connectivity Passive Product
Series BMB-A
Packaging Reel package
Number of Lines 1
Impedance @ Frequency 120 Ohm @ 100MHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 300 mOhm
Operating Temperature Range -55°C ~ 125°C
Package 0805
Mounting SMD
Height (Maximum) 0.043" (1.10mm)
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Win Source Part Number 770254-BMB2A0120AN4
Popularity Medium
Supply and Demand Status Limited
Family Name BMB-A
Introduction Date April 12, 2005
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BMB2A0120AN4 CAD Model

Description

The TE Connectivity Passive Product 770254-BMB2A0120AN4 is a BMB-A series filter with an impedance of 120 Ohm @ 100MHz.

  • Package Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.043" (1.10mm)
  • Current Rating: 300mA
  • DC Resistance (DCR): 300 mOhm
  • Packaging: Reel
  • Operating Temperature Range: -55°C to 125°C
  • Number of Lines: One
  • Supply and Demand Status: Limited
