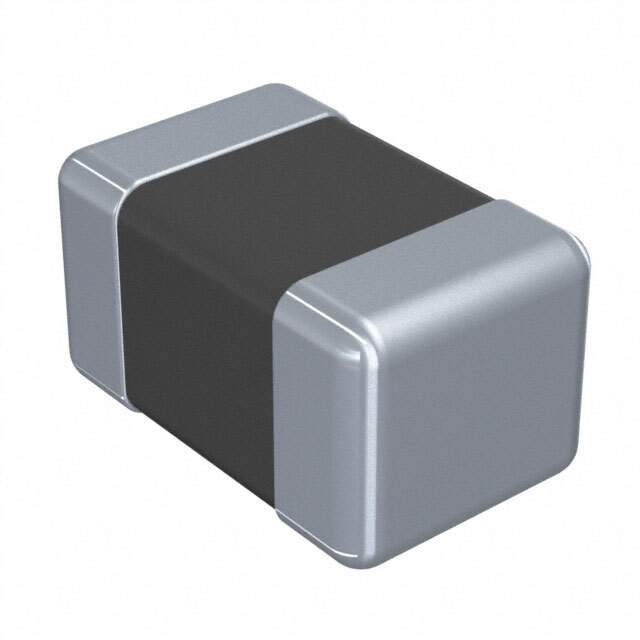

BMB2A1000LN2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TE Connectivity Passive Product
Series BMB-L
Package Tape & Reel
Product Status Obsolete
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 300mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1340170-BMB2A1000LN2
Ultra Librarian 3D Model Ultra Librarian BMB2A1000LN2 CAD Model

Description

The Filters - Ferrite Beads and Chips electronic component is a BMB-L series product with a size/dimension of 0.079" L x 0.047" W (2.00mm x 1.20mm).

  • Current Rating (Max): 350mA
  • Impedance: 1 kOhms @ 100 MHz
  • Win Source Part Number: 1340170-BMB2A1000LN2
