Same model may have multiple batches, images only for reference.

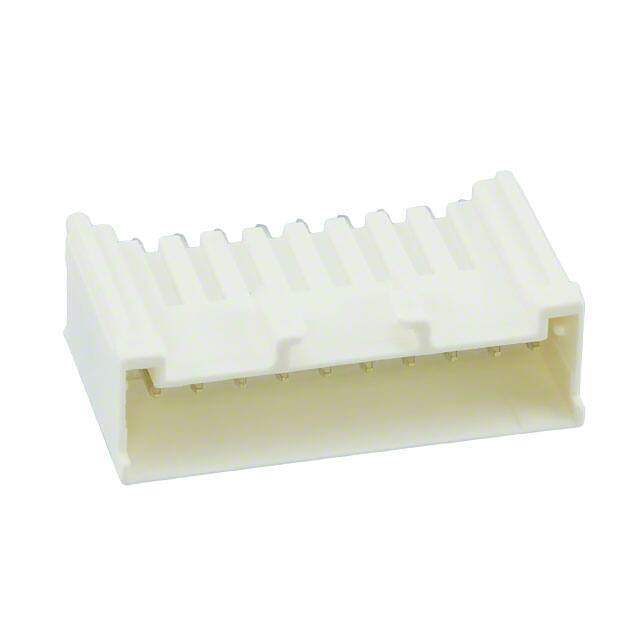

917730-1 Real Image
Same model may have multiple batches, images only for reference.

917730-1

Part No 917730-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.5MM / Connector Header Through Hole 10 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Signal Double Lock
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.185" (4.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.626" (15.90mm)
Insulation Height 0.602" (15.29mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 50V
Mated Stacking Heights 19.2mm
Applications General Purpose
Base Product Number 917730
Standard Package 150 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850445-917730-1
Ultra Librarian 3D Model Ultra Librarian 917730-1 CAD Model

Description

The TE Connectivity 850445-917730-1 is a header male pin connector in the rectangular connectors category.

  • Series: Signal Double Lock
  • Positions: 10
  • Features: Board Guide
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1
  • Termination: Kinked Pin Soldering
  • Fastening Type: Latch Holder
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Voltage Rating: 50V
  • Mated Stacking Heights: 19.2mm
  • Purpose: General Purpose
  • Standard Package: 150 Pieces
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Connector Style: Board to Cable/Wire
  • Mating Pitch: 0.098" (2.50mm)
  • Contact Finish (Mating): Tin
  • Operating Temperature: -30°C to 105°C
  • ECCN Code: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 917730
  • Status: Active
