Same model may have multiple batches, images only for reference.

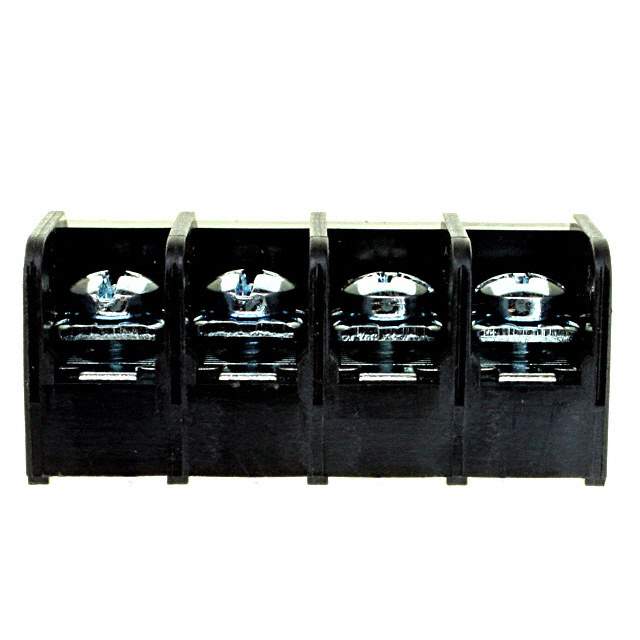

8PCV-04-006 Real Image
Same model may have multiple batches, images only for reference.

8PCV-04-006

Part No 8PCV-04-006
Manufacturer TE Connectivity
Catalog Terminal Blocks
Description CONN BARRIER STRIP 4CIRC 0.438" / 4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Barrier Blocks
Mfr TE Connectivity AMP Connectors
Series #8, Buchanan
Package Bulk
Terminal Block Type Barrier Block
Number of Circuits 4
Number of Wire Entries 4
Pitch 0.438" (11.12mm)
Number of Rows 1
Current Rating (Amps) 30A
Voltage Rating 600V
Wire Gauge 10-18 AWG
Top Termination Screws with Captive Plate
Bottom Termination PC Pin
Barrier Type 3 Wall (Tri)
Color Black
Terminal Screw Material Steel
Terminal Screw Finish Zinc
Mounting Type Through Hole
Temperature Range - Operating -40°C ~ 120°C
Material - Insulation Thermoplastic
Material Flammability Rating UL94 V-0
Base Product Number 8PCV
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names Q5424808A,-8PCV-04-006-SI,A98462,814376570,8-1437657-0
Standard Package 150
Win Source Part Number 1187725-8PCV-04-006
Ultra Librarian 3D Model Ultra Librarian 8PCV-04-006 CAD Model

Description

TE Connectivity AMP Connectors 1034527 is a 4-circuit barrier block terminal with a pitch of 0.438" (11.12mm).

  • Circuits: 4
  • Pitch: 0.438" (11.12mm)
  • Series: #8, Buchanan
  • Mounting: Through-Hole
  • Color: Black
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 600V
  • Current Rating: 30A
  • Termination (Top): Screws with Captive Plate
  • Termination (Bottom): PC Pin
  • Terminal Screw Material: Steel, Zinc Finish
  • Barrier Type: 3-Wall (Tri)
  • Temperature Range: -40°C ~ 120°C
  • Packaging: Bulk
  • ECCN: EAR99
