814-AG11D-ESL-LF

Part No 814-AG11D-ESL-LF
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors

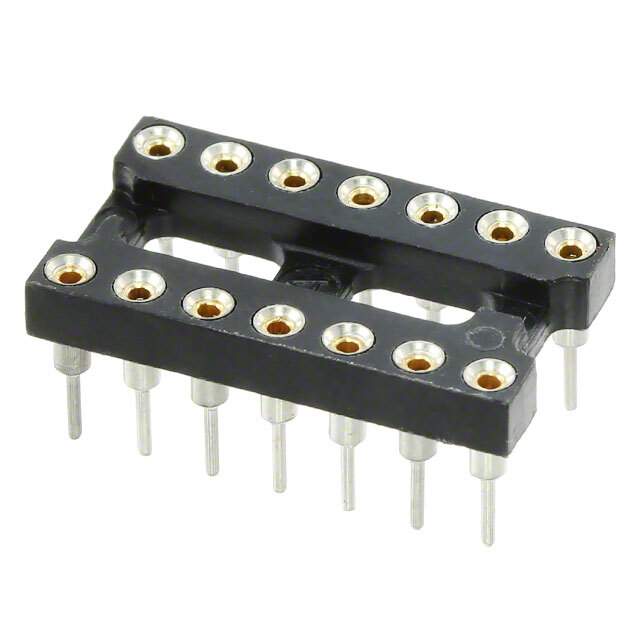

Description CONN IC DIP SOCKET 14POS GOLD / 14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr TE Connectivity AMP Connectors
Series 800
Package Tube
Product Status Obsolete
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 14 (2 x 7)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post Flash
Contact Material - Post Copper
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT) , Polyester
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Contact Resistance 10mOhm
Base Product Number 814
Standard Package 34
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340943-814-AG11D-ESL-LF
Ultra Librarian 3D Model Ultra Librarian 814-AG11D-ESL-LF CAD Model

Description

The TE Connectivity AMP Connectors 800 series IC socket is a DIP type socket with 0.3" (7.62mm) row spacing. TE Connectivity AMP Connectors offers this obsolete component.

  • Series: 800
  • Socket Type: DIP
  • Row Spacing: 0.3" (7.62mm)
  • Feature: Open Frame
  • Termination: Solder
  • Packaging: Tube
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
  • Material Flammability Rating: UL94 V-0
  • Number of Positions/Pins: 14 (2 x 7)
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Beryllium Copper
  • Operating Temperature: -55°C to 105°C
  • Status: Obsolete
