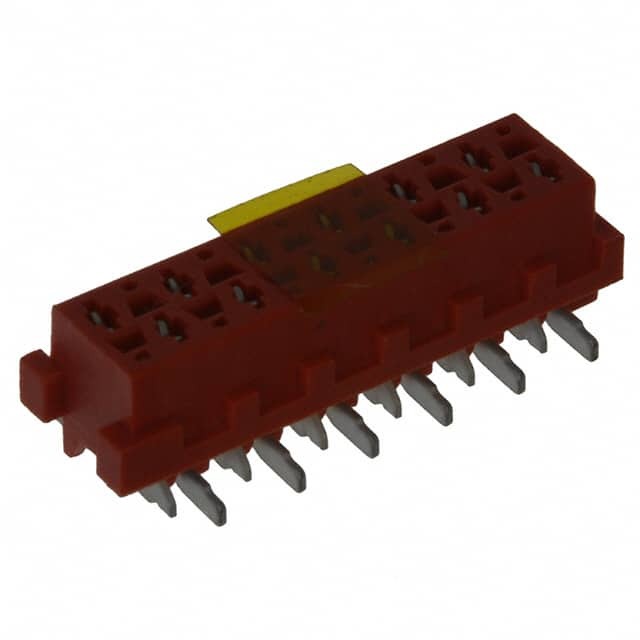

Same model may have multiple batches, images only for reference.
8-188275-2
Same model may have multiple batches, images only for reference.

8-188275-2

Part No 8-188275-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.1 TIN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series Micro-MaTch
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.209" (5.30mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 188275
Standard Package 900 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849324-8-188275-2
Ultra Librarian 3D Model Ultra Librarian 8-188275-2 CAD Model

Description

The Micro-MaTch series 12-position receptacle is a versatile connector designed for board-to-board or cable applications. TE Connectivity is the manufacturer.

  • Positions: 12
  • Pitch: 0.100" (2.54mm)
  • Application: Board-to-Board or Cable
  • Contact Type: Forked
  • Positions Loaded: All
  • Contact Material: Phosphor Bronze, Tin-Plated
  • Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
  • Mounting: Surface Mount
  • Temperature Range: -40°C to 105°C
  • Connector: 188275
  • Packaging: Tape & Reel (900 pieces)
  • Product Status: Active
  • Applications: Automotive and General-Purpose
