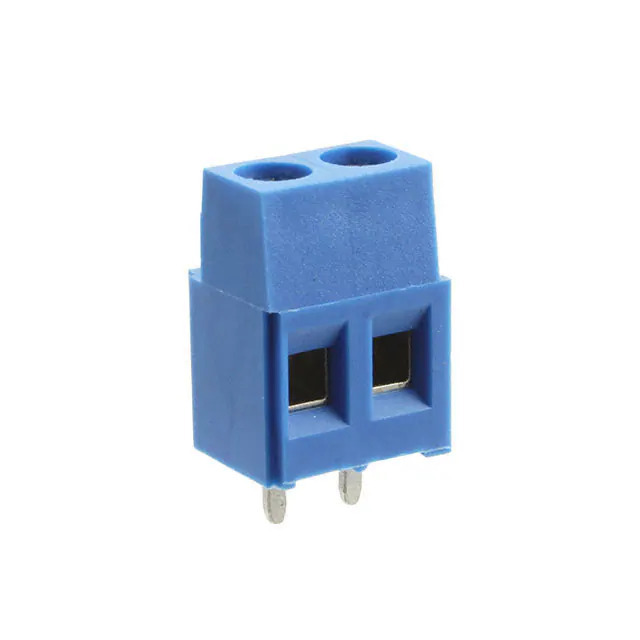

796681-2 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 17.5 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Blue
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 796681
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366073-796681-2
Ultra Librarian 3D Model Ultra Librarian 796681-2 CAD Model

Description

The TE Connectivity AMP Connectors Buchanan Terminal Block is a reliable and versatile solution for wire-to-board connections.

  • Wire Gauge: 12-30 AWG
  • Pitch: 0.197" (5.00mm)
  • Current Rating: 17.5A
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Mounting Type: Through Hole
  • Features: Interlocking (Side)
  • Packaging: Bulk
  • Series: Buchanan
  • Product Status: Active
