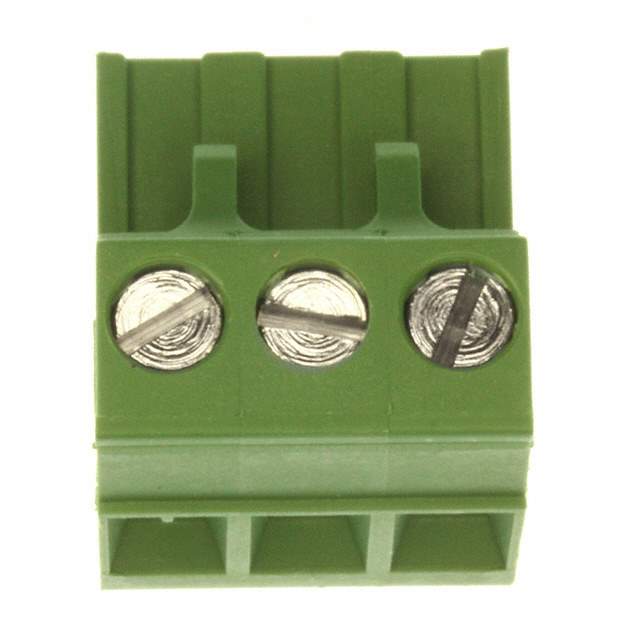

796640-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.197"
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Style Free Hanging (In-Line)
Current - UL 15A
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.05-3mm2
Color Green
Temperature Range - Operating -40°C ~ 110°C
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side), Side Stacking
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.79 Nm (7.0 Lb-In)
Wire Strip Length 6-7.5mm
Contact Material Phosphor Bronze
Dielectric Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.610" (15.49mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133752-796640-3
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 796640-3 CAD Model

Description

The 1133752-796640-3 is a female socket plug electronic component manufactured by TE Connectivity AMP Connectors.

  • Positions per Level: three
  • Levels: one
  • Pitch: 0.197 inches
  • Mounting Style: free hanging (in-line)
  • Termination Style: screw - rising cage clamp
  • Voltage Rating: 300V
  • Current Rating: 15A
  • Wire Gauge Range: 12-30 AWG or 0.05-3mm2
  • Color: green
  • Insulation Height: 0.610 inches or 15.49mm
  • Screw Size: M3
  • Applications: connectors and interconnects
  • Popularity: medium
  • Packaging: bulk
  • Supply and Demand Status: balance
