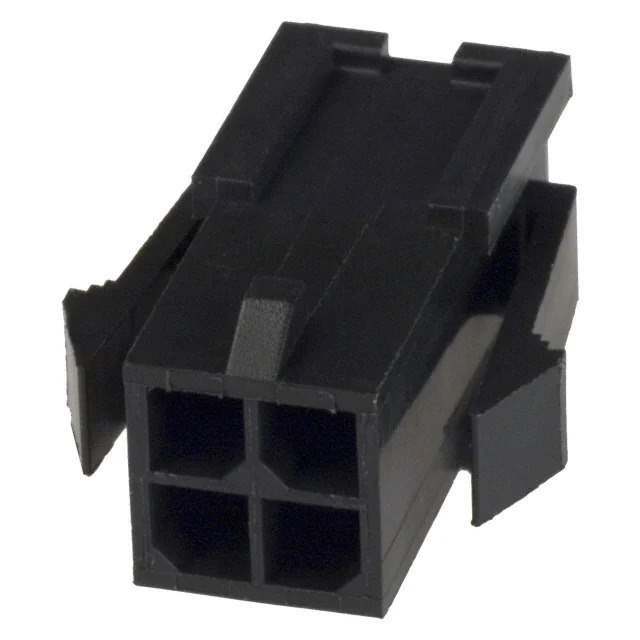

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity
Series Micro MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male Pin
Number of Positions 4
Pitch 0.118" (3.00mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Panel Mount, Snap-In
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Temperature Range - Operating -40°C ~ 105°C
Note Contacts Not Included
Base Product Number 794615
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 858262-794615-4
Ultra Librarian 3D Model Ultra Librarian 794615-4 CAD Model

Description

The Micro MATE-N-LOK rectangular connector housing is a compact and reliable solution for your electronic connections.

  • Positions: 4
  • Pitch: 0.118" (3.00mm)
  • Color: Black
  • Fastening Type: Locking Ramp
  • Connector Type: Plug
  • Contact Gender: Male Pin
  • Termination: Crimp
  • Contacts: Not Included
  • Operating Temperature Range: -40°C to 105°C
  • Package: Bulk
  • Quantity per Package: 1,000 pcs
  • Status: Active
  • Manufacturer: TE Connectivity
