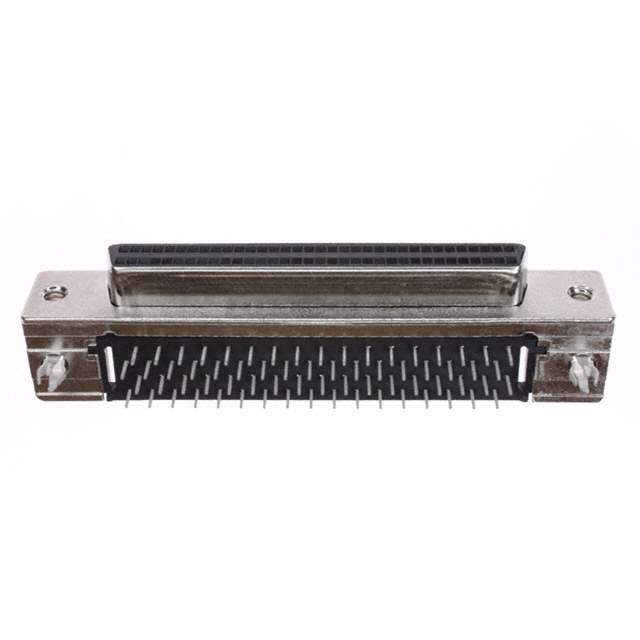

Same model may have multiple batches, images only for reference.

787170-7

Name: 787170-7
Brand: TE Connectivity
SKU: 1040814
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	787170-7
Manufacturer	TE Connectivity
Catalog	D - Sub Connectors
Description	CONN D-TYPE RCPT 68POS R/A SLDR / 68 Position D-Type Receptacle, Female Sockets Connector
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	TE Connectivity AMP Connectors
Series	AMPLIMITE .050 III
Package	Tube
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Number of Positions	68
Number of Rows	2
Mounting Type	Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Flange Feature	Housing/Shell (4-40)
Termination	Solder
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Backset Spacing	0.146" (3.71mm)
Features	Board Lock, Shielded
Voltage Rating	30V
Color	Black
Dielectric Material	Thermoplastic
Contact Material	Phosphor Bronze
Temperature Range - Operating	-55°C ~ 105°C
Base Product Number	787170
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	750737-7,A3324,2266-787170-7
Standard Package	8
Win Source Part Number	1040814-787170-7
Ultra Librarian 3D Model	Ultra Librarian 787170-7 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE .050 III Connector is a high-quality component used in various electronic devices.

Series: AMPLIMITE .050 III
Connector Type: Receptacle, Female Sockets
Contact Type: Signal
Positions: 68
Mounting: Board Edge, Through Hole, Right Angle
Termination: Solder
Contact Finish: Gold
Voltage Rating: 30V
Flange Feature: Housing/Shell (4-40)
Shell Material, Finish: Steel, Nickel Plated
Dielectric Material: Thermoplastic
Shell Size, Connector Layout: 0.050 Pitch x 0.100 Row to Row
Operating Temperature: -55°C ~ 105°C
Alternative Parts: 90122-0794, 5787394-7, 787171-7, and 787395-5787170-7
MSL Level: 1 (Unlimited)
Current Rating (Amps): 1A
REACH Status: Vendor Undefined
HTSUS: 8536.69.4040
Base Product Number: 787170
RoHS Status: RoHS Non-Compliant
