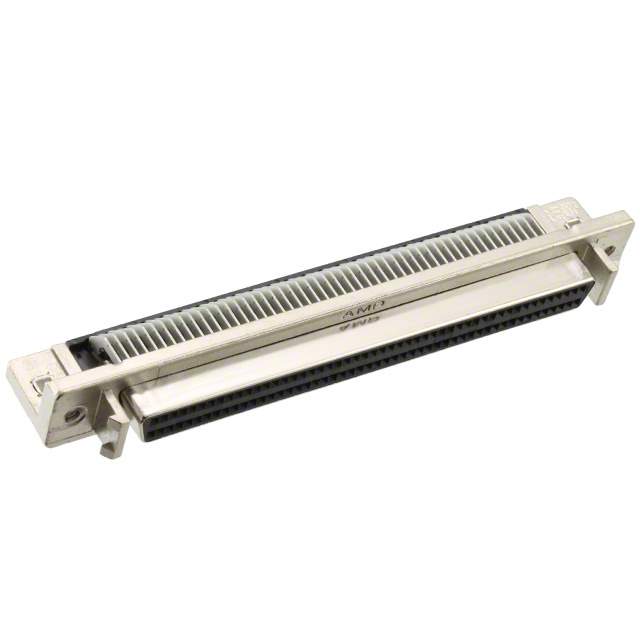

787082-9 Real Image
Same model may have multiple batches, images only for reference.

787082-9

Part No 787082-9
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 100POS R/A SLDR / 100 Position D-Type Receptacle, Female Sockets Connector
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 100
Number of Rows 2
Mounting Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (2-56); Latchblocks
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Backset Spacing 0.146" (3.71mm)
Features Board Lock, Shielded
Voltage Rating 30V
Color Black
Dielectric Material Thermoplastic
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 787082
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 787082-9-ND,A136610,-787082-9-SI,-6422325400-SI,-6422325400-SI-ND
Standard Package 6
Win Source Part Number 1333216-787082-9
Ultra Librarian 3D Model Ultra Librarian 787082-9 CAD Model

Description

The TE Connectivity AMP Connectors 1333216-787082-9 D-sub connector assembly is a reliable choice for many electronic applications.

  • Positions: 100
  • Color: Black
  • Shielded: Yes
  • Connector Type: Receptacle, Female Sockets
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 30V
  • Temperature Range: -55℃ to 105℃
  • Mounting: Board Edge, Through Hole, Right Angle
  • RoHS Compliant: No
  • REACH Affected: Yes
  • Current Rating: 1A
  • Series: 787082
  • Shell Size: 0.050 Pitch x 0.100 Row to Row
