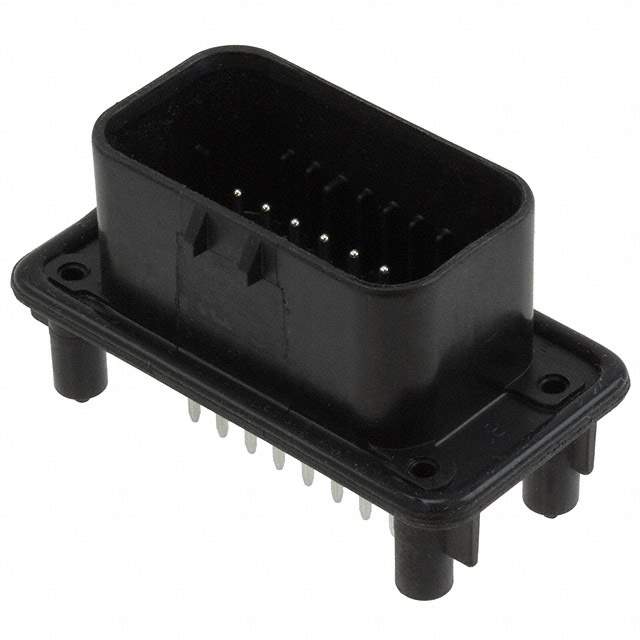

776228-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features Connector Header Panel Mount, Through Hole 23 position 0.157" (4.00mm)
Manufacturer TE Connectivity
Series AMPSEAL
Package Bulk
Operating Temperature Range -40°C ~ 105°C
Mounting Panel Mount, Through Hole
Family Name 776228
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A105103, -776228-1-LSI, -776228-1-CSI, 776228-1-ND, -776228-1-SI, 7762281
Quantity per package 40
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844504-776228-1
Ultra Librarian 3D Model Ultra Librarian 776228-1 CAD Model

Description

The TE Connectivity AMPSEAL 844504-776228-1 connector header is panel mountable and has 23 positions with a through hole of 0.157" (4.00mm). This 844504-776228-1 connector can operate in temperatures ranging from -40°C to 105°C and has a family name of 776228.

  • Mounting Type: Panel Mount
  • Positions: 23
  • Through Hole: 0.157" (4.00mm)
  • Temperature Range: -40°C to 105°C
  • Family: 776228
  • Popularity: Popular
  • Packaging: Bulk
  • Quantity per Package: 40
  • Category: Connectors
  • ECCN: EAR99
  • REACH: Affected
  • HTSUS: 8536.69.4040
  • Estimated Production Lead Time: 14 weeks
  • MSL Level: 1 (unlimited)
