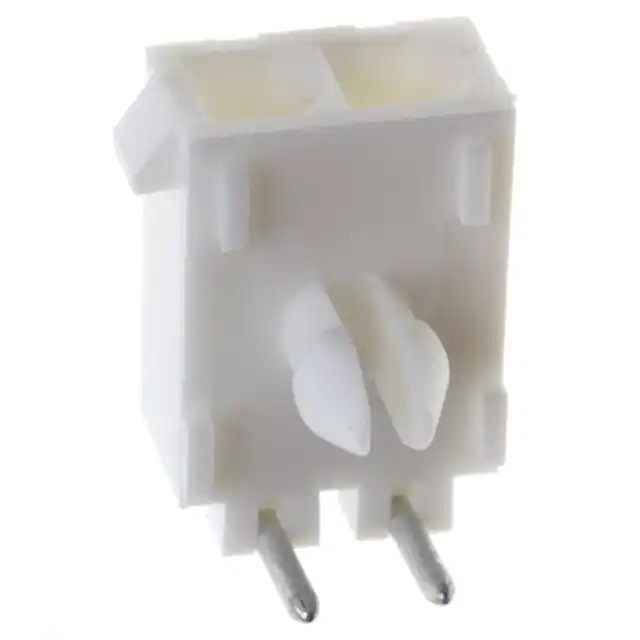

770966-1 TE Connectivity
Same model may have multiple batches, images only for reference.

770966-1

Part No 770966-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 4.14MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 2
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.145" (3.68mm)
Overall Contact Length -
Insulation Height 0.225" (5.72mm)
Contact Shape Circular
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770966
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377619-770966-1
Ultra Librarian 3D Model Ultra Librarian 770966-1 CAD Model

Description

The TE Connectivity Mini-Universal MATE-N-LOK Rectangular Connector is a compact and reliable board to cable/wire connector. Bold the product name Mini-Universal MATE-N-LOK and manufacturer TE Connectivity.

  • Connector Type: Header
  • Mounting Type: Right Angle
  • Number of Positions: 2
  • Pitch: 0.163" (4.14mm)
  • Shrouded: Yes, 4 Walls
  • Current Rating: Varies by Wire Gauge
  • Temperature Range: -20°C to 85°C
  • Series: Mini-Universal MATE-N-LOK
  • Feature: Board Lock
  • Contact Material: Brass
  • Insulation Material: Polyamide
  • Application: General Purpose
