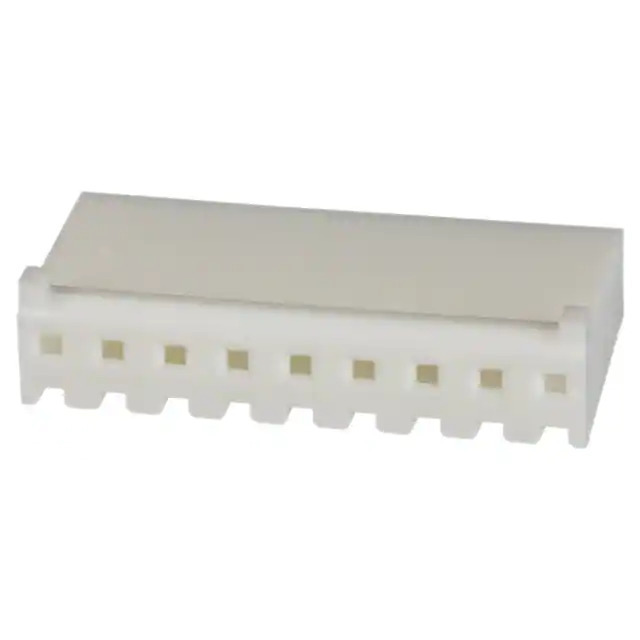

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series SL-156
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 9
Pitch 0.156" (3.96mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features Polarizing Key
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 770849
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365730-770849-9
Ultra Librarian 3D Model Ultra Librarian 770849-9 CAD Model

Description

The TE Connectivity AMP Connectors SL-156 is a rectangular connector housing designed for various applications.

  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -55°C to 105°C
  • Contact Termination: Crimp
  • Positions: 9
  • Rows: 1
  • Polarizing Key: Yes
  • Pitch: 0.156" (3.96mm)
