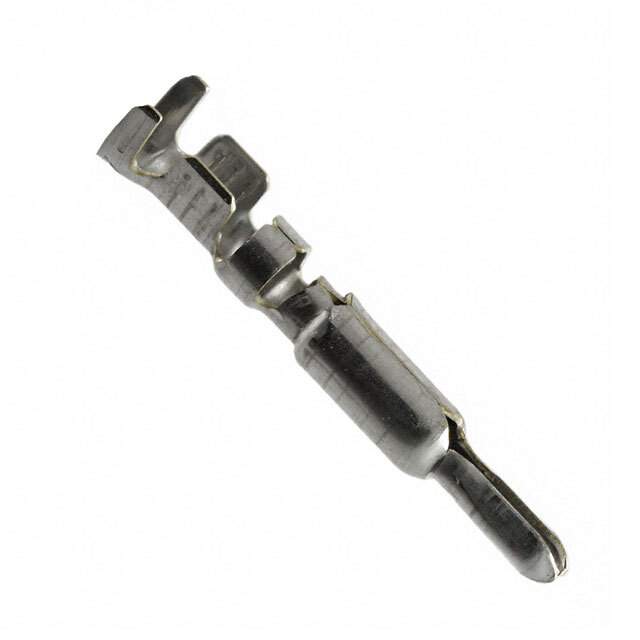

770007-1 Real Image
Same model may have multiple batches, images only for reference.

770007-1

Part No 770007-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN SPLIT PIN 14-20AWG CRMP TIN / Split Pin Contact Tin 14-20 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK II
Package Tape & Reel (TR),Cut Tape (CT)
Pin or Socket Split Pin
Contact Termination Crimp
Wire Gauge 14-20 AWG
Contact Finish Tin
Base Product Number 770007
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -770007-1-CSI,770007-1-ND,7700071,A25174TR,A25174CT,A25174-ND,-770007-1-SI,A25174
Standard Package 4,000
Win Source Part Number 1025877-770007-1
Ultra Librarian 3D Model Ultra Librarian 770007-1 CAD Model

Description

This Universal MATE-N-LOK II split pin contact is a type of rectangular connector that is used for wire gauge 14-20 AWG.

  • Contact Termination: Crimp
  • Contact Finish: Tin
  • Packaging: Tape and Reel (TR) or Cut Tape (CT)
  • Standard Package: 4,000
