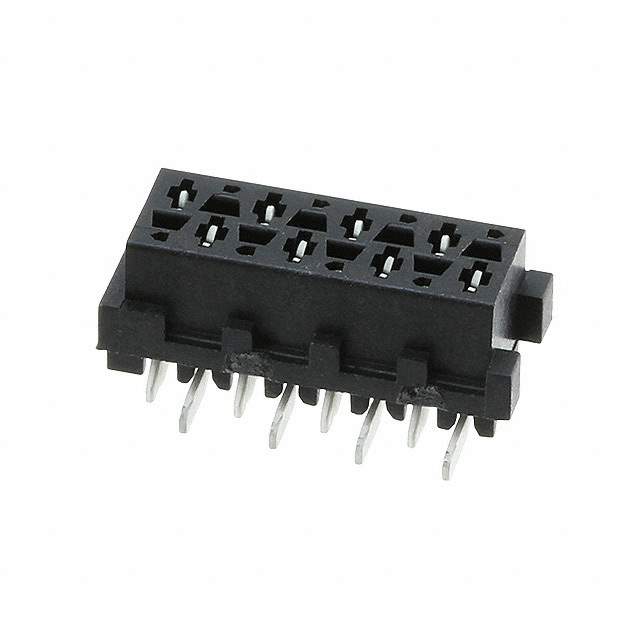

Same model may have multiple batches, images only for reference.

7-2178711-8

Name: 7-2178711-8
Brand: TE Connectivity
SKU: 761807
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7-2178711-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN 8P P&P THT VERT RCPT SMD
Datasheet	7-2178711-8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	Micro-MaTch
Packaging	Reel package
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1μin (3.00μm)
Insulation Color	Black
Insulation Height	0.209" (5.30mm)
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Applications	General Purpose, Telecommunications
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material	Brass
Contact Finish Thickness - Post	118.1μin (3.00μm)
Win Source Part Number	761807-7-2178711-8
Popularity	Medium
Supply and Demand Status	Limited
Family Name	2178711
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	Germany
Halogen Free	Not Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 7-2178711-8 CAD Model

Description

The 761807-7-2178711-8 is a Micro-MaTch series connector from TE Connectivity AMP Connectors.

Application: Board-to-Board or Cable
Pitch-Mating: 0.100" (2.54mm)
Type: Receptacle, Forked Contact
Positions: 8 (All Loaded)
Features: Pick and Place
Mounting: SMD
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass-Filled
Supply and Demand Status: Limited
Estimated EOL Date: 2028
