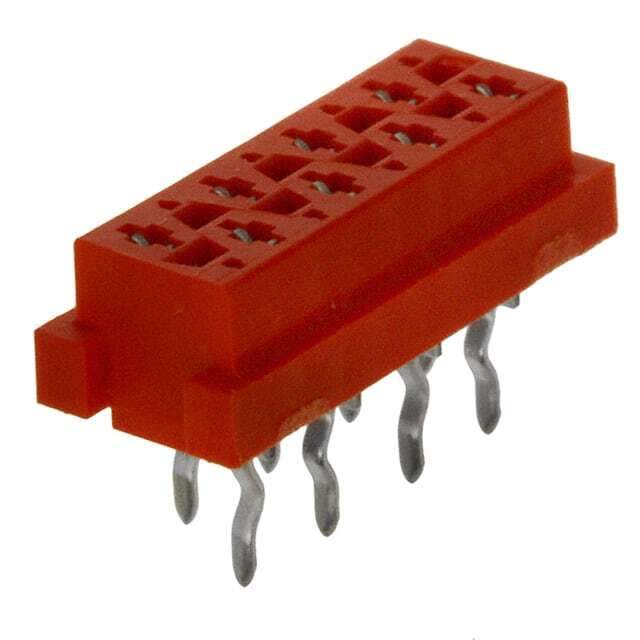

Same model may have multiple batches, images only for reference.

7-215079-8

Name: 7-215079-8
Brand: TE Connectivity
SKU: 857109
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	7-215079-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.1 TIN PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity
Series	Micro-MaTch
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Phosphor Bronze
Base Product Number	215079
Standard Package	250 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	857109-7-215079-8
Ultra Librarian 3D Model	Ultra Librarian 7-215079-8 CAD Model

Alternative Products

Description

The 857109-7-215079-8 is a rectangular connector in the Micro-MaTch series.

Series: Micro-MaTch
Connector Type: Receptacle
Positions: 8
Rows: 2
Contact Feature: Forked
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Contact Finish: Tin
Contact Material: Phosphor Bronze
Voltage Rating: 100VDC
Temperature Range: -40°C to 105°C
Application: Automotive, General Purpose
Packaging: Tape & Reel, Cut Tape
Standard Package: 250 pieces
Product Status: Active
Manufacturer: TE Connectivity
Fastening Type: Push-Pull
