Same model may have multiple batches, images only for reference.

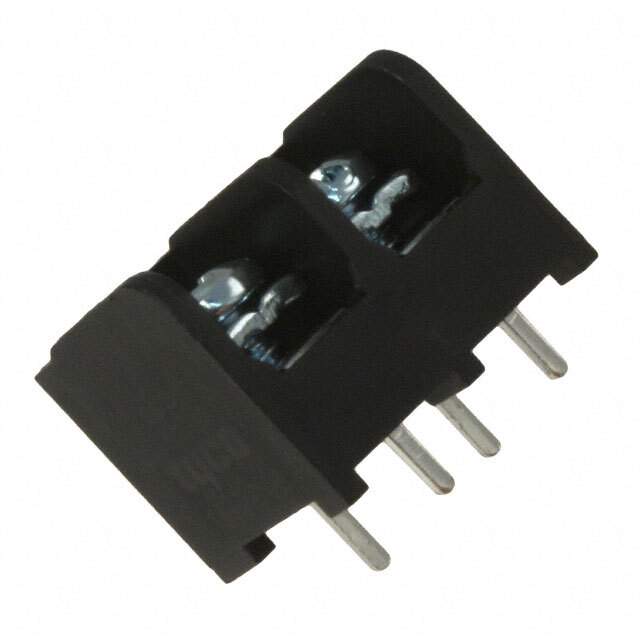

6DBL-02-006 Real Image
Same model may have multiple batches, images only for reference.

6DBL-02-006

Part No 6DBL-02-006
Manufacturer TE Connectivity
Catalog Terminal Blocks
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Barrier Blocks
Mfr TE Connectivity AMP Connectors
Series #6, Buchanan
Package Bulk
Terminal Block Type Barrier Block
Number of Circuits 2
Number of Wire Entries 2
Pitch 0.375" (9.53mm)
Number of Rows 1
Current Rating (Amps) 25A
Voltage Rating 300V
Wire Gauge 12-22 AWG
Top Termination Screws with Captive Plate
Bottom Termination PC Pin
Barrier Type 3 Wall (Tri)
Color Black
Terminal Screw Material Steel
Terminal Screw Finish Zinc, Clear Chromate
Mounting Type Through Hole
Temperature Range - Operating 105°C
Material - Insulation Thermoplastic
Material Flammability Rating UL94 V-0
Base Product Number 6DBL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1314444-6DBL-02-006
Ultra Librarian 3D Model Ultra Librarian 6DBL-02-006 CAD Model

Description

The TE Connectivity AMP Connectors 6DBL-02-006 is a barrier block terminal block designed for through-hole mounting.

  • Mounting Type: through-hole
  • Pitch: 0.375" (9.53mm)
  • Voltage Rating: 300V
  • Current Rating: 25A
  • Temperature Range: 105°C
  • Barrier Type: 3 wall (tri)
  • Top Termination: screws with captive plate
  • Bottom Termination: PC pin
  • Terminal Screw Material: steel with a zinc, clear chromate finish
