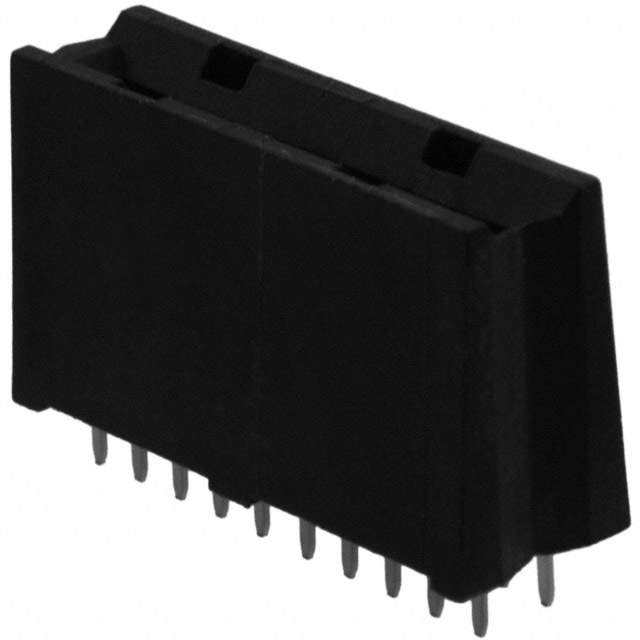

6651170-3 Real Image1 6651170-3 Real Image2
Same model may have multiple batches, images only for reference.
6651170-3 Real Image1 6651170-3 Real Image2
6651170-3 Real Image1 6651170-3 Real Image2
Same model may have multiple batches, images only for reference.

6651170-3

Part No 6651170-3
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 4POS 0.508 / 4 (Power) Position Female Connector Non Specified - Dual Edge Gold 0.508" (12.90mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Mfr TE Connectivity
Series Crown Edge, Elcon
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 2
Number of Positions 4 (Power)
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.508" (12.90mm)
Read Out Dual
Features -
Mounting Type Through Hole
Termination Solder
Contact Material Phosphor Bronze Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type -
Color Black
Flange Feature -
Temperature Range - Operating -
Material - Insulation Thermoplastic, Glass Filled
Base Product Number 6651170
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 192 pcs
Win Source Part Number 1381000-6651170-3
Ultra Librarian 3D Model Ultra Librarian 6651170-3 CAD Model

Description

The 6651170-3 edgeboard connector is a high-quality connector designed for use in power applications from TE Connectivity.

  • Number of Positions: 4
  • Pitch: 0.508" (12.90mm)
  • Insulation Material: Thermoplastic, Glass-Filled
  • Contact Material: Phosphor Bronze Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Gender: Female
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Package: Bulk
  • Standard Package: 192 pcs
