Same model may have multiple batches, images only for reference.

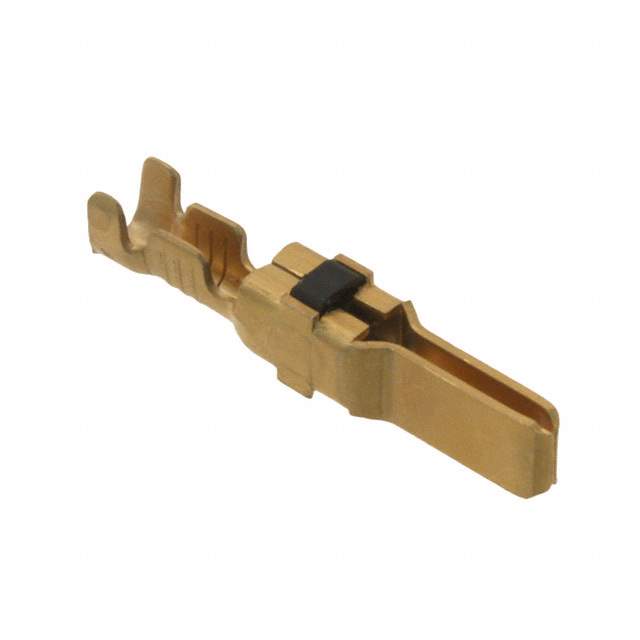

66255-6 Real Image
Same model may have multiple batches, images only for reference.

66255-6

Part No 66255-6
Manufacturer TE Connectivity
Catalog Contacts - Multi Purpose
Description CONN PIN 12-16 AWG 30GOLD CRIMP / Contact PIN 16 Size Crimp ST Cable Mount 12-16AWG T/R
Datasheet
66255-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity Aerospace, Defense and Marine
Series Multimate XII
Packaging Strip
Type Power, Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 12-16 AWG
Material Copper
Plating Gold
Plating - Thickness 30μin (0.76μm)
Win Source Part Number 770959-66255-6
Popularity Medium
Supply and Demand Status Limited
Family Name 66255
Introduction Date July 18, 2007
ECCN EAR99
Country of Origin China, Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 66255-6 CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine Multimate XII series power connector is a reliable and efficient solution for crimping 12-16 AWG wires. The pin-type connector is made of high-quality copper material with a gold plating of 30μin (0.76μm) thickness.

  • Wire Gauge: 12-16 AWG
  • Contact Material: Copper
  • Contact Finish: Gold (30μin / 0.76μm)
  • Packaging: Strip
  • ECCN: EAR99
  • Estimated EOL Date: 2025
  • Country of Manufacture: China, Mexico, and the United States of America
