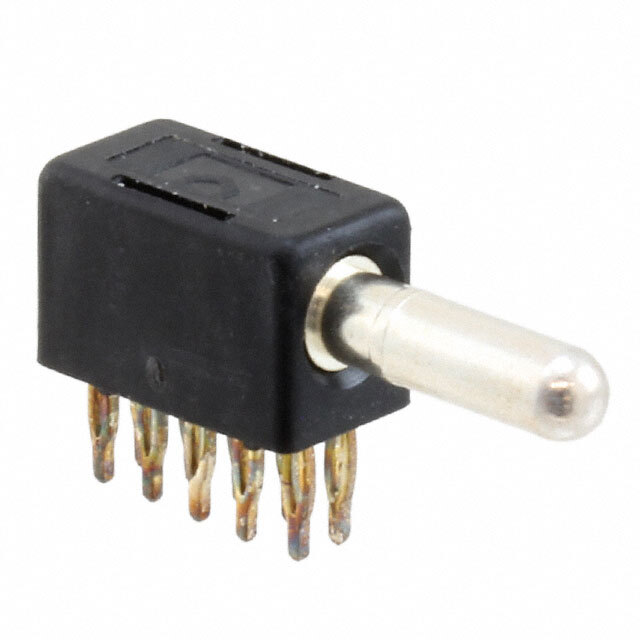

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Connector Type Header, Male Pins and Blades
Connector Style Multi-Beam
Number of Positions 26
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 4
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 24 Signal, 2 Power
Features Board Lock, Mating Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1634858-6450840-7
Ultra Librarian 3D Model Ultra Librarian 6450840-7 CAD Model
