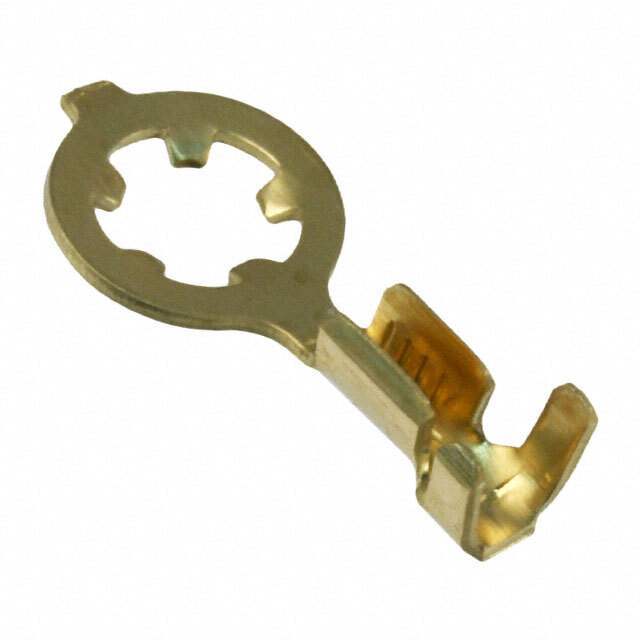

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Ring Connectors
Part Status Active
Terminal Type Oval
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.370" (9.40mm)
Length - Overall 0.772" (19.61mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Non-Insulated
Ultra Librarian 3D Model Ultra Librarian 61436-1 CAD Model

Description

Closed Ring Tongue Terminal, 22 – 16 AWG, #8 / M4 Stud, 4.5 mm [.177 in] Stud Diameter, Open Barrel, Straight, Unplated Plating, Uninsulated
