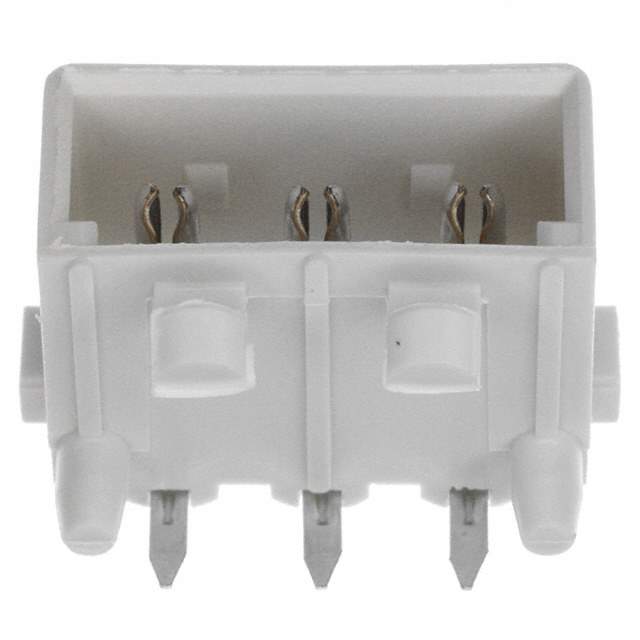

643488-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Post 0.140" (3.56mm)
Insulation Height 0.345" (8.76mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 12A
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 643488
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 6434881,A25429,643488-1-ND,-643488-1-SI
Standard Package 100
Win Source Part Number 1334207-643488-1
Ultra Librarian 3D Model Ultra Librarian 643488-1 CAD Model

Description

The 1334207-643488-1 is a 3-position header connector from TE Connectivity AMP Connectors.

  • Packaging: Bulk
  • Standard Package: 100 units
  • ECCN: EAR99
  • Positions: 3
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 250VAC
  • Mounting: Through-Hole, Right-Angle
  • Pitch-Mating: 0.200" (5.08mm)
  • Shrouding: Shrouded, 4 Walls
  • Temperature Range: -55°C ~ 105°C
  • Board Guide: Yes
  • Board Lock: Yes
  • Manufacturer: TE Connectivity AMP Connectors
