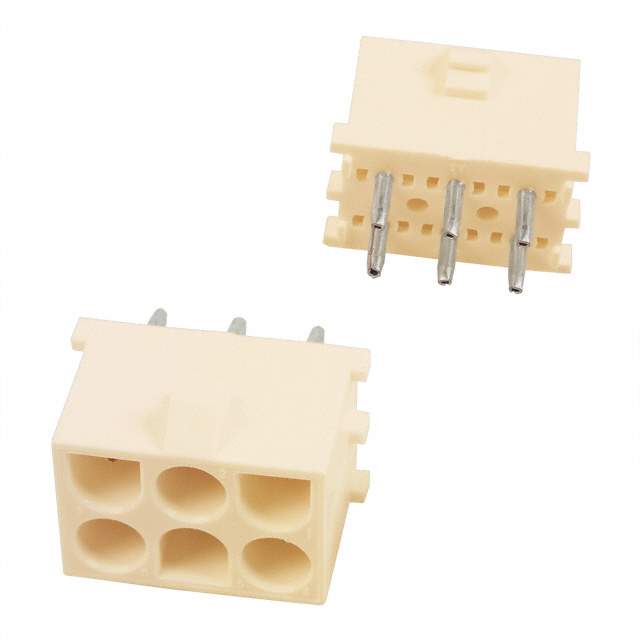

641969-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 6
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 12A
Voltage Rating 600VAC
Applications General Purpose
Base Product Number 641969
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 6419691,641969-1-ND,A25294,-641969-1-SI
Standard Package 100
Win Source Part Number 1334244-641969-1
Ultra Librarian 3D Model Ultra Librarian 641969-1 CAD Model

Description

The 1334244-641969-1 is a male pin header connector with 6 positions and a board guide feature.

  • Position Number: 6
  • Board Guide: Yes
  • Loaded: All positions
  • Row Number: 3
  • Termination Method: solder
  • Fastening Type: locking ramp
  • Contact Material: phosphor bronze
  • Voltage Rating: 600VAC
  • Mounting Type: through hole
  • Insulation Material: polyamide (PA), nylon
  • Style: board to cable/wire
  • Pitch Mating: 0.250 inches (6.35 mm)
  • Contact Finish Mating and Post: tin
  • Shrouding: shrouded - 4 wall
  • Row Spacing Mating: 0.250 inches (6.35 mm)
  • Contact Length Post: 0.155 inches (3.94 mm)
  • Insulation Height: 0.550 inches (13.97 mm)
  • Contact Shape: circular
  • Operating Temperature Range: -40 to 105 degrees Celsius
  • RoHS: non-compliant
