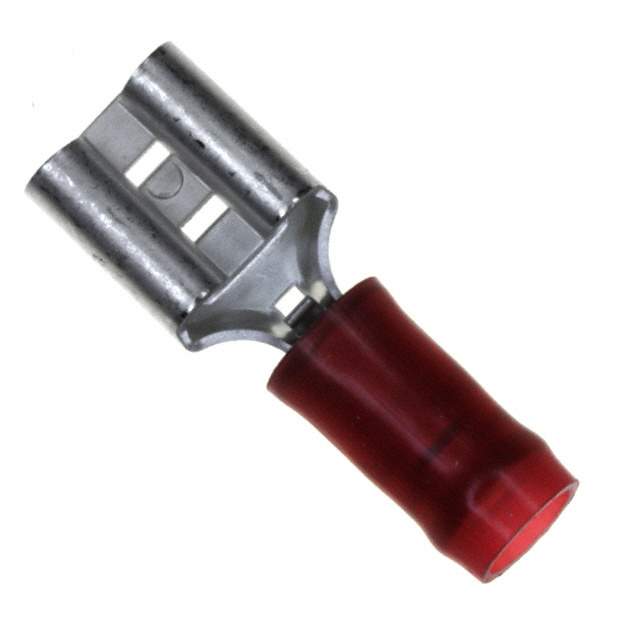

640903-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston, PIDG
Package Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.900" (22.86mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Mating End Insulated
Mounting Type Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.140" (3.56mm)
Base Product Number 640903
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -640903-1-SI,-E23464-000-SI,A0903,6409031,-E23464-000-SI-ND,-E23464-000-LSI
Standard Package 1,000
Win Source Part Number 1012414-640903-1
Ultra Librarian 3D Model Ultra Librarian 640903-1 CAD Model

Description

The TE Connectivity Faston series 640903-1 is a female quick disconnect terminal that is used with 18-22 AWG wires.

  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Length: 0.900" (22.86mm)
  • Insulation Diameter: 0.140" (3.56mm)
  • Insulation: Insulated on the non-mating end
  • Contact Finish: Tin
  • Package: Bulk (1000 units)
  • REACH: Unaffected
  • ECCN: EAR99
