Same model may have multiple batches, images only for reference.

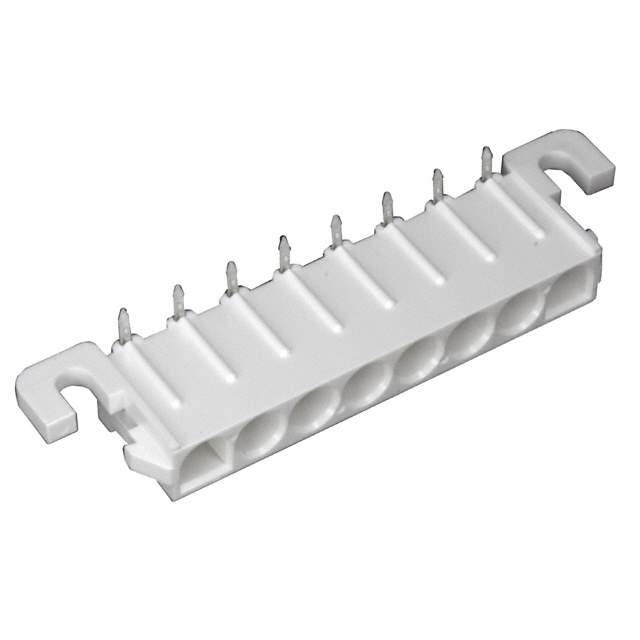

640584-1 Real Image
Same model may have multiple batches, images only for reference.

640584-1

Part No 640584-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN HEADER R/A 8POS 6.35MM  /  Connector Header Through Hole, Right Angle 8 position 0.250" (6.35mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.160" (4.06mm)
Insulation Height 0.360" (9.14mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Mounting Flange
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 12A
Voltage Rating 600VAC
Applications General Purpose
Base Product Number 640584
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A14312,6405841,-640584-1-SI
Standard Package 140
Win Source Part Number 975079-640584-1
Ultra Librarian 3D Model Ultra Librarian 640584-1 CAD Model

Description

The Universal MATE-N-LOK header from TE Connectivity AMP Connectors has 8 male pins and a mounting flange.

  • Series: Universal MATE-N-LOK
  • Pins: 8, Male
  • Mounting: Flange
  • Style: Board to Cable/Wire
  • Pitch: 0.250" (6.35mm)
  • Application: General Purpose
  • Voltage Rating: 600VAC
  • Insulation Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 V-0
  • Termination: Solder
  • Fastening: Locking Ramp
