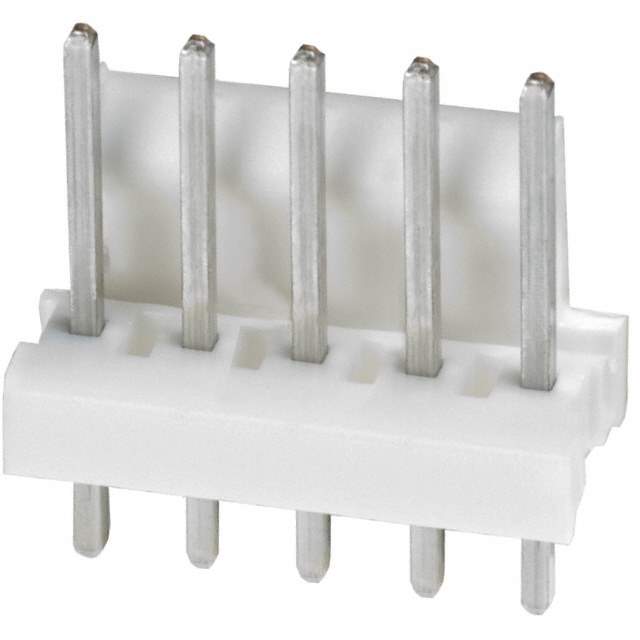

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811900-640456-5
Ultra Librarian 3D Model Ultra Librarian 640456-5 CAD Model

Description

The TE Connectivity AMP Connectors 811900-640456-5 is a header connector with 5 male pin contacts.

  • Mounting: Through-hole
  • Voltage Rating: 250VAC
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Design: Shrouded 1-wall
  • Fastening Type: Friction Lock
  • Temperature Range: -55°C to 105°C
  • Pitch: 0.100" (2.54mm)
  • Package: Bulk
  • Quantity Per Package: 1
