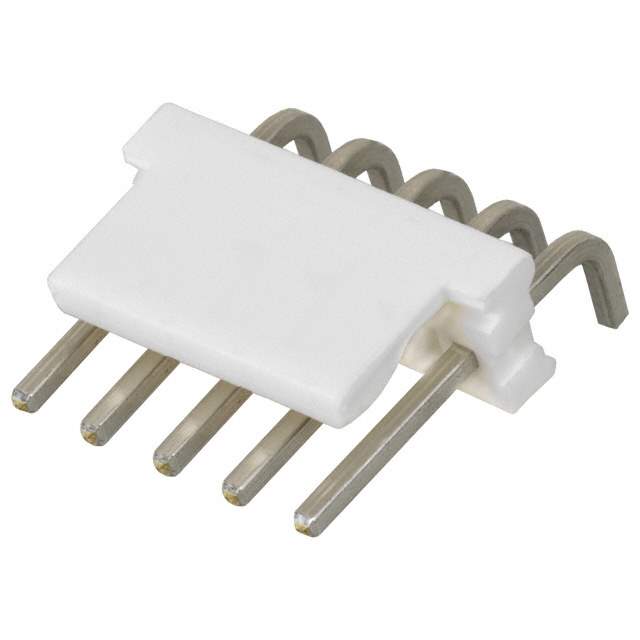

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.300" (7.62mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 640389
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-640389-5,A19921,-2-42935-3123-SI,-2-42935-3123-SI-ND,6403895,-640389-5-SI
Standard Package 1,000
Win Source Part Number 1334234-640389-5
Ultra Librarian 3D Model Ultra Librarian 640389-5 CAD Model

Description

The TE Connectivity AMP Connectors 1334234-640389-5 is a header connector with a pitch-mating of 0.156" (3.96mm) and is mounted through hole, right angle.

  • Pitch Mating: 0.156" (3.96mm)
  • Mounting: through hole, right angle
  • Temperature Range: -55°C ~ 105°C
  • Current Rating: varies by wire gauge
  • Package: bulk
  • Standard Package: 1,000
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • RoHS Status: ROHS3 compliant
