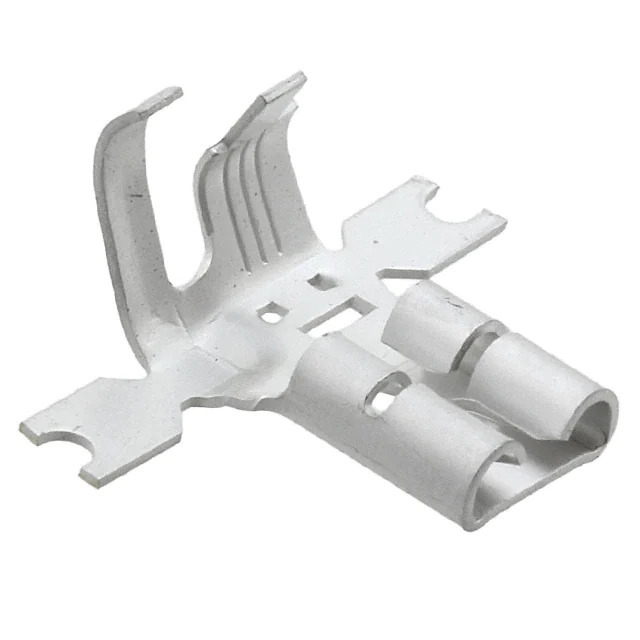

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall -
Termination Crimp
Wire Gauge 12-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.210" (2.79mm ~ 5.33mm)
Base Product Number 63555
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377548-63555-2
Ultra Librarian 3D Model Ultra Librarian 63555-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston series quick connect terminal is a reliable and efficient component for various applications.

  • Wire Gauge: 12-18 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Termination Style: Crimp
  • Mounting Types: Free Hanging (In-Line) and Right Angle
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Gender: Female
  • Insulation Diameter: 0.110" to 0.210" (2.79mm to 5.33mm)
