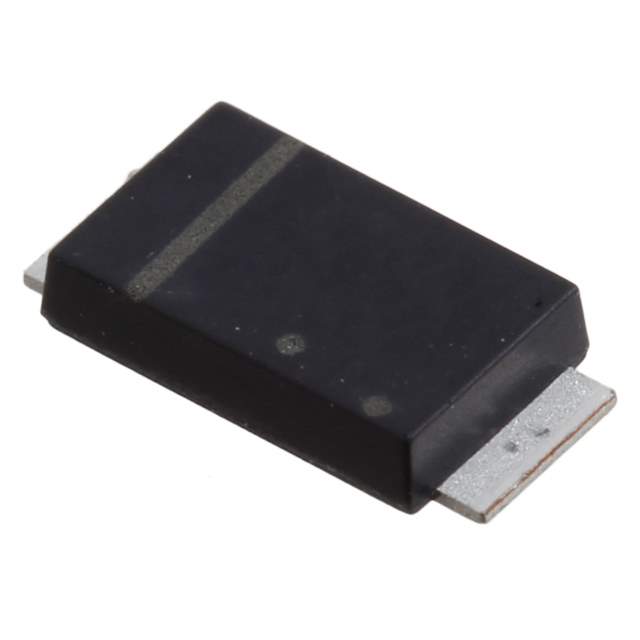

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 3A (DC)
Voltage - Forward (Vf) (Max) @ If 650mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 21ns
Current - Reverse Leakage @ Vr 150μA @ 60V
Capacitance @ Vr, F 65pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package TMiniP2-F2-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1032662-DB2460100L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2460100L CAD Model

Description

The Panasonic Electronic Components Schottky diode is a reliable and efficient electronic component.

  • Maximum Reverse Voltage: 60V
  • Forward Voltage: 650mV @ 3A
  • Reverse Recovery Time: 21ns
  • Current Leakage @ Maximum Reverse Voltage: 150μA
  • Capacitance: 65pF @ 10V, 1MHz
  • Category: Discrete Semiconductor Products
  • Maximum Junction Temperature: 150°C
  • Package: TMiniP2-F2-B
  • Speed: Fast Recovery, 200mA (Io)
  • Popularity: Medium
