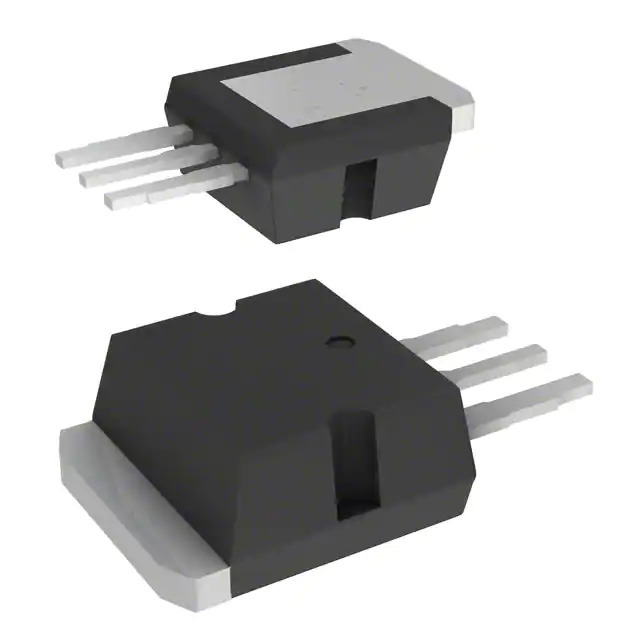

The ACST610-8R is a cutting-edge overvoltage protected AC switch, designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This device is a part of the ACST6 family, which is known for its robust performance in handling AC loads with the simplicity of a standard Triac but with enhanced features.
Key Features
- High Surge Capability: The ACST610-8R is capable of withstanding high surge currents, making it an excellent choice for applications that experience frequent surges and require a reliable switch to maintain functionality.
- Overvoltage Protection: A built-in crowbar technology ensures that the device is protected against overvoltages, thus safeguarding the circuits and loads it controls.
- Snubberless Device: This switch operates without the need for an external snubber circuit, which simplifies design and reduces component count.
- High Junction Temperature: With a maximum operating junction temperature of 150°C, the ACST610-8R is suitable for high-temperature environments, ensuring reliability under thermal stress.
- Insulated Package: The device comes in an insulated TO-220AB package, which provides electrical isolation from the heatsink without the need for additional insulating hardware.
Applications
The ACST610-8R is versatile and can be used in a variety of applications, including:
- Home appliances (e.g., washing machines, refrigerators)
- Industrial controls (e.g., motor starters, pump controllers)
- Smart home systems
- Lighting systems (e.g., dimmers, switchers)
Technical Specifications
Some of the key technical specifications of the ACST610-8R include:
- Blocking Voltage: Up to 800V
- On-state RMS current: 6A
- Gate Trigger Current (Igt):
- Non-repetitive Surge Peak On-state Current (ITSM): 60A
In conclusion, the ACST610-8R from STMicroelectronics is a highly reliable and efficient solution for controlling AC loads with enhanced safety features. Its robust design and overvoltage protection make it an ideal choice for a wide range of applications where performance and durability are critical.
