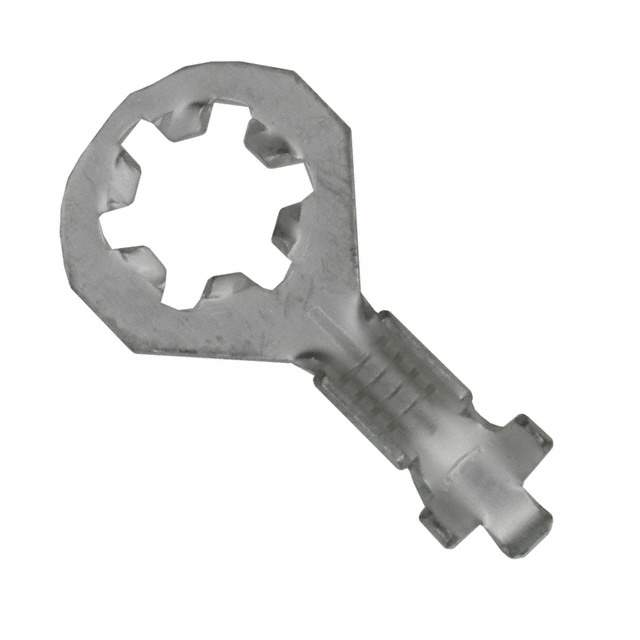

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Oval
Stud/Tab Size 10 Stud
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.445" (11.30mm)
Length - Overall 0.772" (19.61mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.145" (2.67mm ~ 3.68mm)
Base Product Number 61795
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A29904TR,-61795-3-SI,A29904CT,61795-3-ND,-61795-3-CSI,617953
Standard Package 9,000
Win Source Part Number 1333745-61795-3
Ultra Librarian 3D Model Ultra Librarian 61795-3 CAD Model

Description

This electronic component is a ring connector manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1333745-61795-3
  • Packaging: Reel
  • Contact Finish: Tin
  • Wire Gauge: 14-18 AWG
  • Insulation: Non-Insulated
  • Terminal Type: Oval Terminal
  • Standard Package: 9,000
  • RoHS Compliant: Yes
