Same model may have multiple batches, images only for reference.

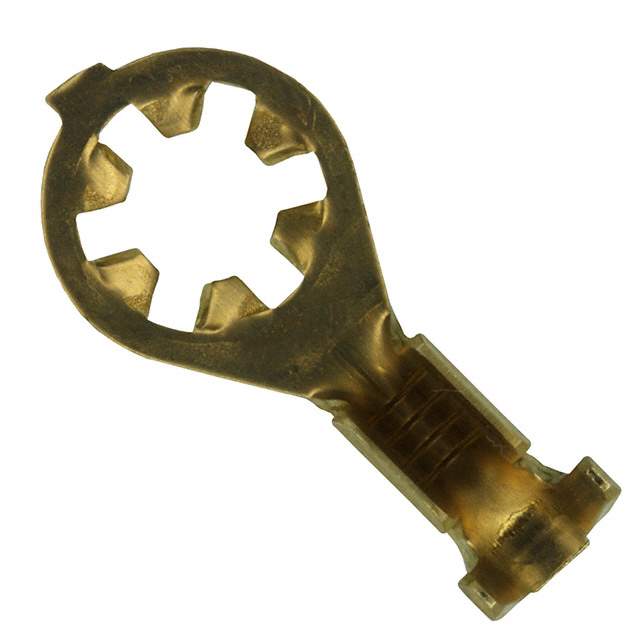

61794-4 Real Image
Same model may have multiple batches, images only for reference.

61794-4

Part No 61794-4
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 14-18AWG #8 CRIMP / Ring Terminal Connector 8 Stud Circular 14-18 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.370" (9.40mm)
Length - Overall 0.772" (19.61mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Contact Material Brass
Insulation Diameter 0.105" ~ 0.145" (2.67mm ~ 3.68mm)
Base Product Number 61794
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -61794-4-CSI,2266-61794-4TR,A29902TR,A29902CT,61794-4-ND,-61794-4-SI,617944
Standard Package 9,000
Win Source Part Number 1333675-61794-4
Ultra Librarian 3D Model Ultra Librarian 61794-4 CAD Model

Description

The TE Connectivity AMP Connectors 61794-4 is a ring connector that belongs to the category of electronic components.

  • Insulation: Non-Insulated
  • Termination Style: Crimp
  • Thickness: 0.025"
