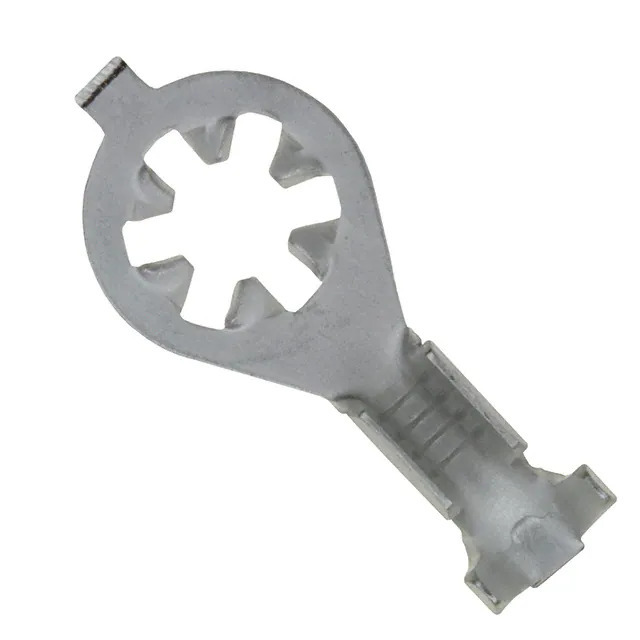

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.370" (9.40mm)
Length - Overall 0.772" (19.61mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Color -
Contact Material Steel
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.145" (2.67mm ~ 3.68mm)
Material - Insulation -
Base Product Number 61793
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365100-61793-1
Ultra Librarian 3D Model Ultra Librarian 61793-1 CAD Model

Description

The 1365100-61793-1 is a ring connector from TE Connectivity AMP Connectors.

  • Wire Gauge Range: 14-18 AWG
  • Contact Finish: Tin
  • Insulated: Non-Insulated
  • Overall Length: 0.772" (19.61mm)
  • Termination: Crimp
  • Contact Material: Steel
  • Terminal Type: Circular
  • Insulation Diameter: 0.105" to 0.145" (2.67mm to 3.68mm)
  • Thickness: 0.025" (0.64mm)
  • Width: 0.370" (9.40mm)
