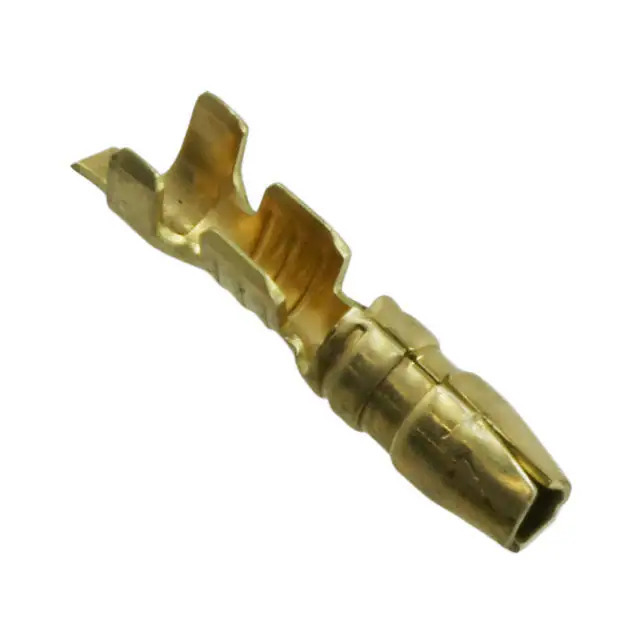

Same model may have multiple batches, images only for reference.

60766-1

Name: 60766-1
Brand: TE Connectivity
SKU: 1363203
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60766-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN TERM PIN 14-18AWG CRIMP / Terminal Connector Male, Pin (Plug) 14-18 AWG Crimp
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr	TE Connectivity AMP Connectors
Series	Shur-Plug
Package	Tape & Reel (TR)
Product Status	Active
Terminal Type	Male, Pin (Plug)
Diameter - Barrel	0.156" (3.96mm)
Wire Gauge	14-18 AWG
Length - Overall	0.710" (18.03mm)
Length - Barrel	0.350" (8.89mm)
Insulation	Non-Insulated
Termination	Crimp
Features	-
Contact Material	Brass
Contact Finish	-
Color	-
Insulation Diameter	0.085" ~ 0.125" (2.16mm ~ 3.18mm)
Material - Insulation	-
Base Product Number	60766
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1363203-60766-1
Ultra Librarian 3D Model	Ultra Librarian 60766-1 CAD Model

Description

The TE Connectivity AMP Connectors 1363203-60766-1 is a barrel, bullet connector terminal designed by.

Series: Shur-Plug
Insulated: Non-Insulated
Wire Gauge: 14-18 AWG
Termination: Crimp
Length - Overall: 0.710" (18.03mm)
Barrel Diameter: 0.156" (3.96mm)
Barrel Length: 0.350" (8.89mm)
Contact Material: Brass
Product Status: Active
Packaging: Tape & Reel
