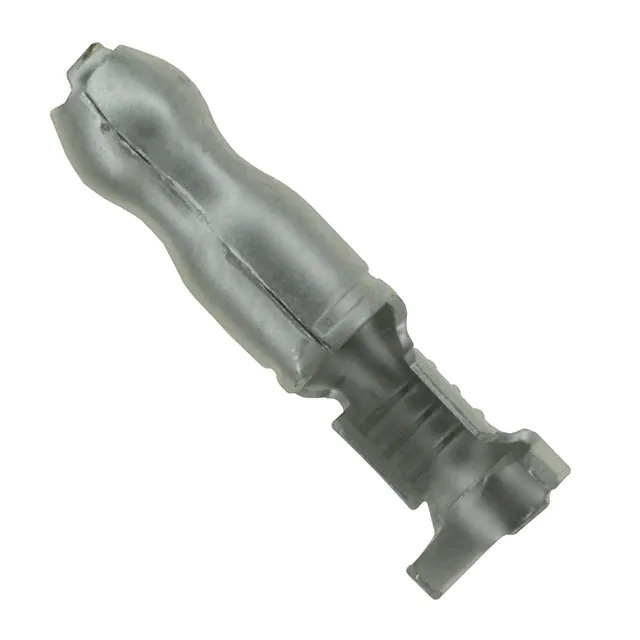

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series Shur-Plug
Package Tape & Reel (TR)
Product Status Active
Terminal Type Male, Pin (Plug)
Diameter - Barrel 0.180" (4.57mm)
Wire Gauge 14-18 AWG
Length - Overall 0.745" (18.92mm)
Length - Barrel 0.447" (11.35mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Brass
Contact Finish Tin
Color -
Insulation Diameter 0.120" ~ 0.175" (3.05mm ~ 4.45mm)
Material - Insulation -
Base Product Number 60660
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363098-60660-1
Ultra Librarian 3D Model Ultra Librarian 60660-1 CAD Model

Description

The TE Connectivity AMP Connectors Shur-Plug series offers barrel, bullet connectors for various applications.

  • Pin Type: Male Pin (Plug)
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Overall Length: 0.745" (18.92mm)
  • Barrel Diameter: 0.180" (4.57mm)
  • Barrel Length: 0.447" (11.35mm)
  • Contact Material: Brass
  • Termination Method: Crimping
  • Base Product Number: 60660
  • HTSUS Code: 8536.90.4000
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
  • REACH Status: Vendor Undefined
