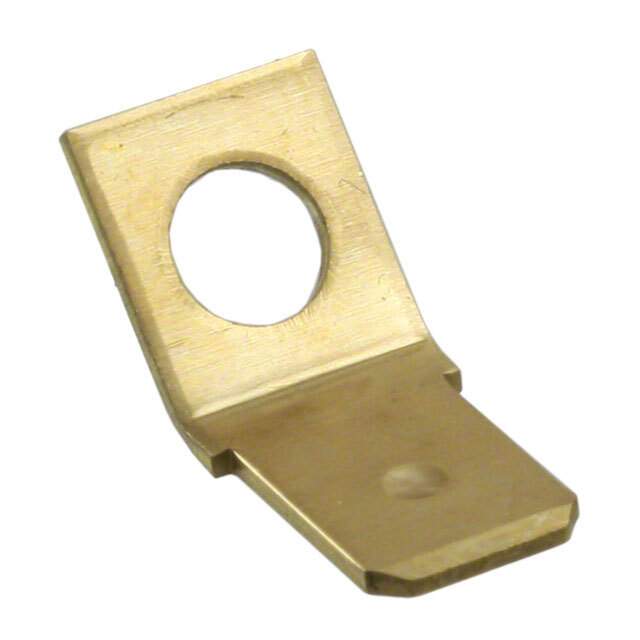

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Terminal Type Angled - 45°
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Screw, Rivet, Stud
Insulation Non-Insulated
Mounting Type Board, Chassis
Contact Material Brass
Base Product Number 60465
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 60465-1-ND,-60465-1-SI,A27860,604651,2266-60465-1
Standard Package 1,000
Win Source Part Number 1040847-60465-1
Ultra Librarian 3D Model Ultra Librarian 60465-1 CAD Model

Description

This quick connect terminal is designed for use in connectors and interconnects. It is a Faston series terminal with angled - 45° terminal type and comes without insulation.

  • Series: Faston
  • Terminal Type: Angled - 45°
  • Insulation: Without Insulation
  • Package: Bulk
  • Standard Package: 1,000
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Alternative Parts: PC3L25004LT, 42822-4, 140814-1, 42214-2, 62576-1, 1257, 126960465-1
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.90.4000
  • Manufacturer: TE Connectivity AMP Connectors
