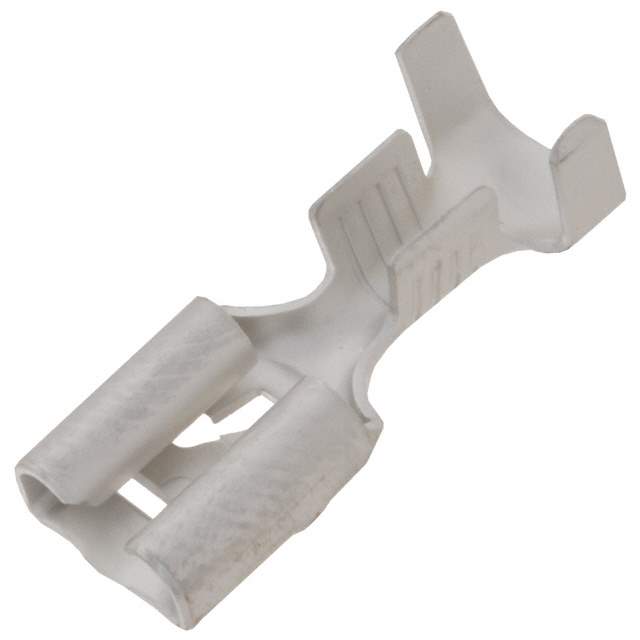

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.750" (19.05mm)
Termination Crimp
Wire Gauge 12-16 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.130" ~ 0.210" (3.30mm ~ 5.33mm)
Base Product Number 60249
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 602492,-60249-2-SI,A27930,60249-2-ND,A27930TR,A27930-ND,A27930CT,-60249-2-CSI
Standard Package 9,000
Win Source Part Number 1026092-60249-2
Ultra Librarian 3D Model Ultra Librarian 60249-2 CAD Model

Description

The Fastin-Faston is a series of connectors that fall under the category of terminals - quick connects and quick disconnect connectors. The 1026092-60249-2 is a female connector with a standard terminal type and a wire gauge of 12-16 AWG.

  • Connector Type: Female
  • Terminal Type: Standard
  • Wire Gauge: 12-16 AWG
  • Overall Length: 0.750 inches (19.05mm)
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.305 inches (7.75mm)
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.130 inches to 0.210 inches (3.30mm to 5.33mm)
  • Mounting Type: Free-Hanging (In-Line)
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Contact Material: Brass
  • Contact Finish: Tin
