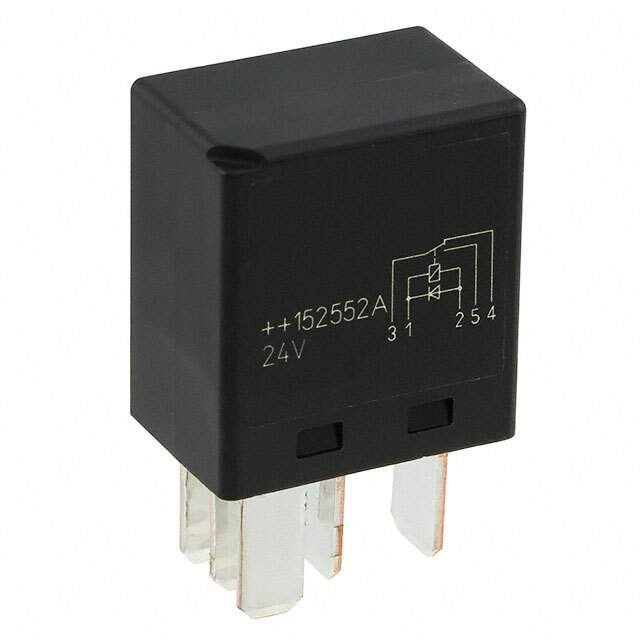

6-1393292-3 Real Image
Same model may have multiple batches, images only for reference.

6-1393292-3

Part No 6-1393292-3
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 30A 24V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr TE Connectivity AMP Connectors
Series Micro Relay A
Package Bulk
Coil Type Non Latching
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30 A
Switching Voltage 24VDC - Nom
Must Operate Voltage 14.4 VDC
Must Release Voltage 3.6 VDC
Features Diode
Mounting Type Socketable
Termination Style Plug In, Quick Connect - Multiple Sizes
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver Alloy
Coil Power 1.34W
Coil Resistance 430 Ohms
Base Product Number 1393292
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Other Names A122646,6-1393292-3-ND,V23074A2002A403
Standard Package 480
Win Source Part Number 1129623-6-1393292-3
Ultra Librarian 3D Model Ultra Librarian 6-1393292-3 CAD Model

Description

The Micro Relay A is a plug-in, quick connect relay designed for use in automotive applications.

  • Contact Form: SPDT
  • Contact Material: Silver alloy
  • Coil Resistance: 430 ohms
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 30A
  • Switching Voltage: 24VDC
  • Mounting Type: Socketable
  • Operating Temperature: -40°C to 125°C
  • Package: Bulk
  • Standard Package: 480
  • Alternative Parts: 6-1393292-3, V23074-A2002-A403, and more
  • Must Operate Voltage: 14.4VDC
  • Must Release Voltage: 3.6VDC
  • Feature: Diode
