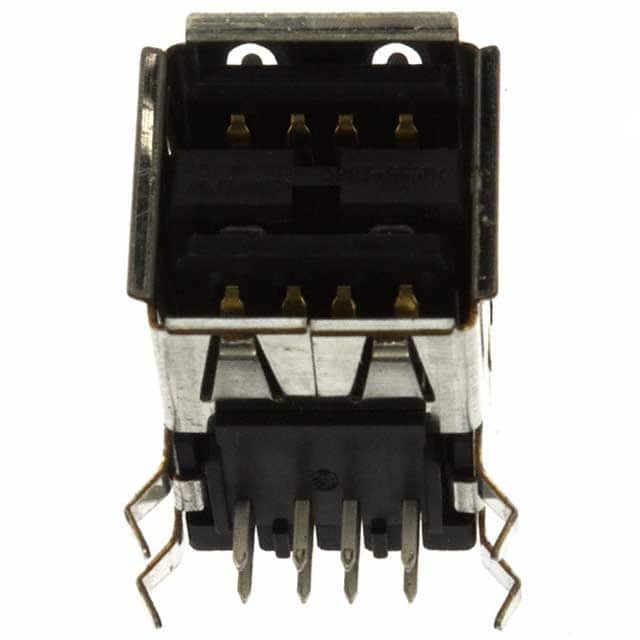

5787617-1
Same model may have multiple batches, images only for reference.

5787617-1

Part No 5787617-1
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA STACK R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity
Package Tray
Product Status Active
Connector Type USB-A (USB TYPE-A), Stacked
Number of Contacts 8
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 1500
Contact Finish Gold or Gold-Palladium
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 5787617
Standard Package 88 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856595-5787617-1
Ultra Librarian 3D Model Ultra Librarian 5787617-1 CAD Model

Description

The USB-A (USB TYPE-A) Stacked Connector Assembly is a high-quality electronic component designed for USB, DVI, and HDMI applications. It is manufactured by TE Connectivity.

  • Feature: Board Lock
  • Termination: Solder
  • Contacts: 8
  • Connector Type: Receptacle
  • Voltage Rating: 30VAC
  • Current Rating: 1A per contact
  • Material: Steel and Stainless Steel
  • Temperature Range: -55°C to 85°C
