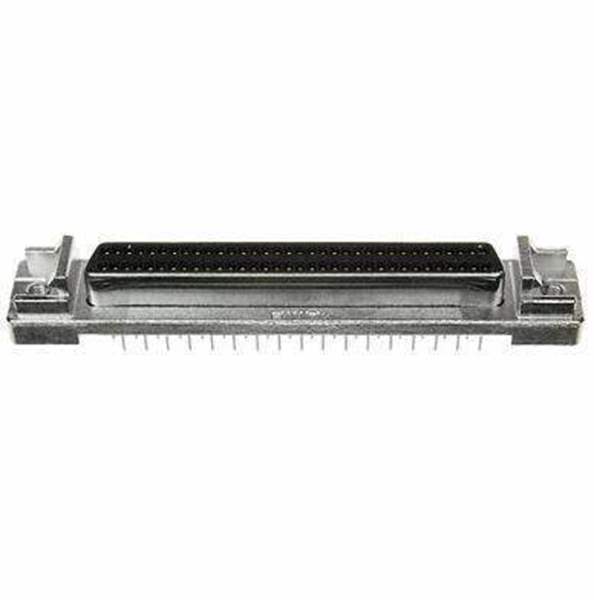

5749069-7 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5749069-7

Part No 5749069-7
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 68POS VERT SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 5749069-7 TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Product Status Active
Connector Type Receptacle, Female Sockets
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (2-56); Latchblocks, Rails
Shell Material, Finish Steel, Nickel Plated
Material Flammability Rating UL94 V-0
Features Shielded
Dielectric Material Thermoplastic
Win Source Part Number WS1209583-5749069-7
Ultra Librarian 3D Model Ultra Librarian 5749069-7 CAD Model

Description

68 Position D-Type Receptacle, Female Sockets Connector
