5747841-4 TE Connectivity
Same model may have multiple batches, images only for reference.

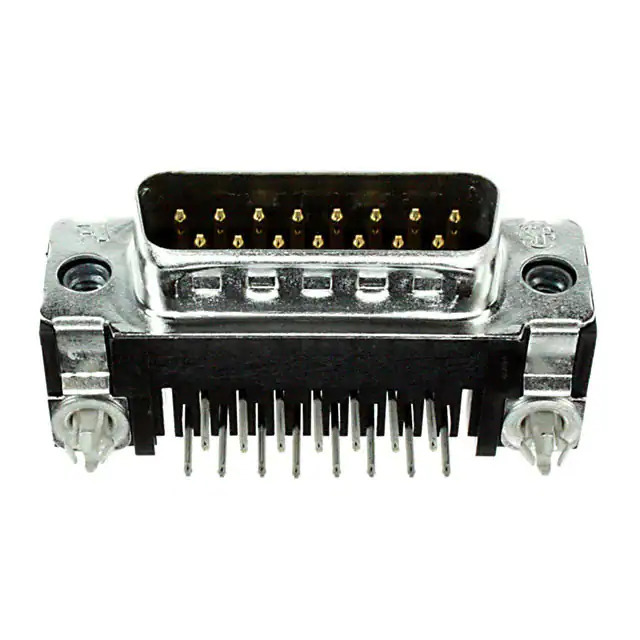

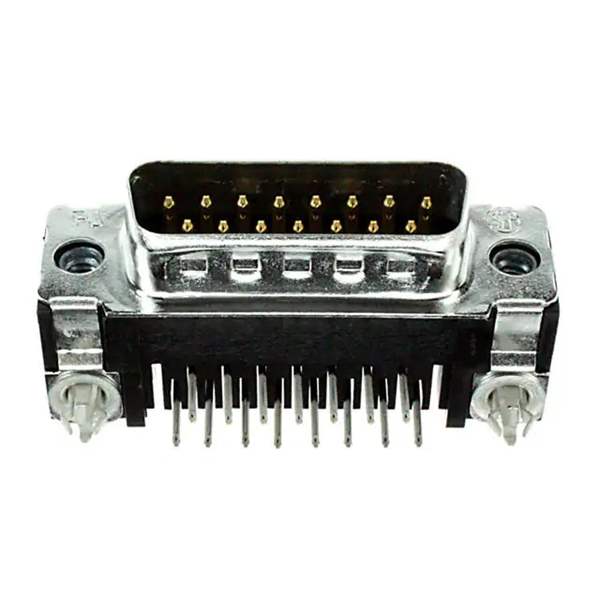

5747841-4

Part No 5747841-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS R/A SLDR / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap, Grounding Indents
Voltage Rating 125V
Color Black
Contact Form -
Dielectric Material -
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747841
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365143-5747841-4
Ultra Librarian 3D Model Ultra Librarian 5747841-4 CAD Model

Description

The 1365143-5747841-4 is a D-Sub Connector Assembly from TE Connectivity AMP Connectors. It is part of the AMPLIMITE HD-20 series and features a board lock, ground strap, and grounding indents.

  • Mounting Type: Through-Hole, Right Angle
  • Current Rating: 6A
  • Contact Finish: Gold
  • Contact Material: Brass
  • Voltage Rating: 125V
  • Housing/Shell Material: Steel (Tin Plated)
  • Positions: 15
  • Rows: 2
  • Termination: Solder
  • Flammability Rating: UL94 V-0
  • Product Status: Active
  • Package: Tray
