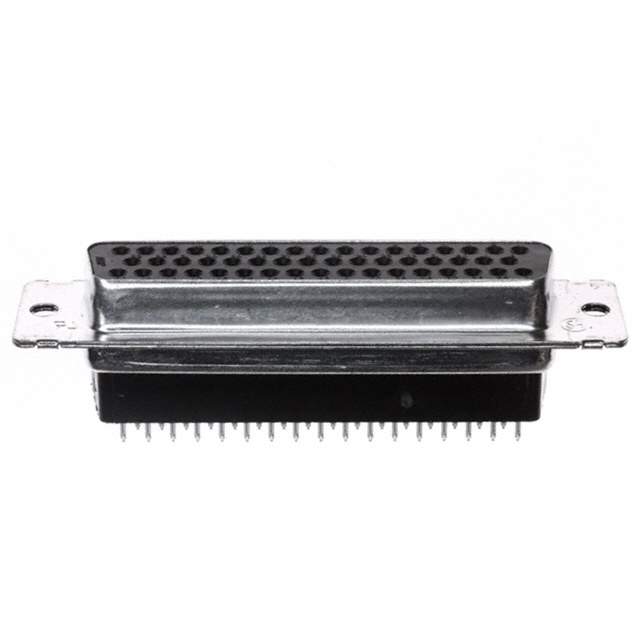

Same model may have multiple batches, images only for reference.

5745191-1

Name: 5745191-1
Brand: TE Connectivity
SKU: 764064
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5745191-1
Manufacturer	TE Connectivity
Catalog	D - SUB, D - SHAPED connectors
Description	CONN D-SUB RCPT 50POS VERT SLDR
Datasheet	5745191-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	AMPLIMITE HD-20
Packaging	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	50
Number of Rows	3
Shell Size, Connector Layout	5 (DD, D)
Contact Type	Signal
Mounting Style	Through Hole
Flange Feature	Housing/Shell (Unthreaded)
Termination	Solder
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
Operating Temperature Range	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Contact Material	Phosphor Bronze
Win Source Part Number	764064-5745191-1
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 5745191-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series is a high-density D-subminiature connector from TE Connectivity AMP Connectors.

Positions: 50
Connector Type: Receptacle
Socket Type: Female
Mounting Style: Through Hole
Color: Black
Housing Material: Polyamide (PA), Nylon, Glass-Filled
Material Flammability Rating: UL94 V-0
Contact Finish: Gold
Contact Finish Thickness: Flash
Contact Material: Phosphor Bronze
Signal Contact Type: Signal
Connector Style: D-sub
Voltage Rating: 125V
Current Rating: 6A
Operating Temperature Range: -55°C to 105°C
Shell Material: Steel
Shell Finish: Tin Plated
Shell Size: 5 (DD, D)
Flange Feature: Housing/Shell (Unthreaded)
