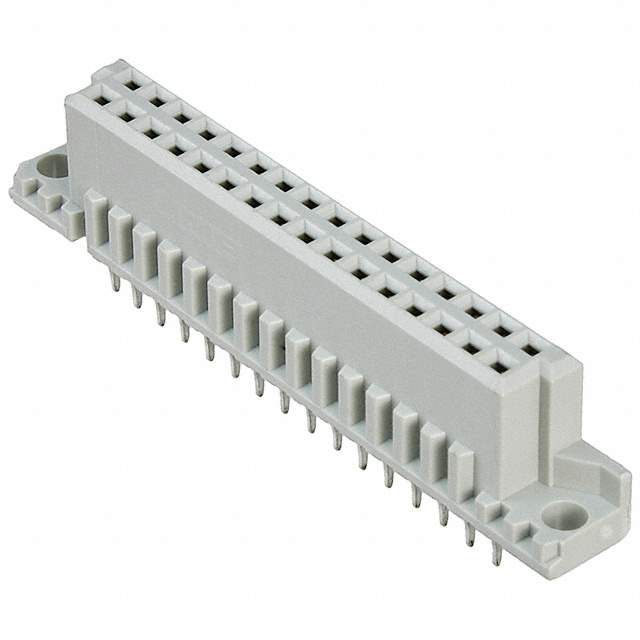

5650864-5 Real Image
Same model may have multiple batches, images only for reference.

5650864-5

Part No 5650864-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN RCPT 32POS PCB / 32 Position Din Connector Receptacle, Female Sockets Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 32
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Level, Class 2
Mounting Type Through Hole
Termination Press-Fit
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5650864
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 56508645,2266-5650864-5
Standard Package 40
Win Source Part Number 963104-5650864-5
Ultra Librarian 3D Model Ultra Librarian 5650864-5 CAD Model

Description

The 963104-5650864-5 from TE Connectivity AMP Connectors is a Eurocard series receptacle connector with female sockets.

  • Positions Loaded: 32
  • Rows: 2
  • Pitch: 0.100 inches (2.54mm)
  • Termination: Press-Fit
  • Insulation Material: Polymer Thermoplastic with Glass-Filled
  • Flammability Rating: UL94 V-0
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Tray
  • Current Rating: 1.5A
