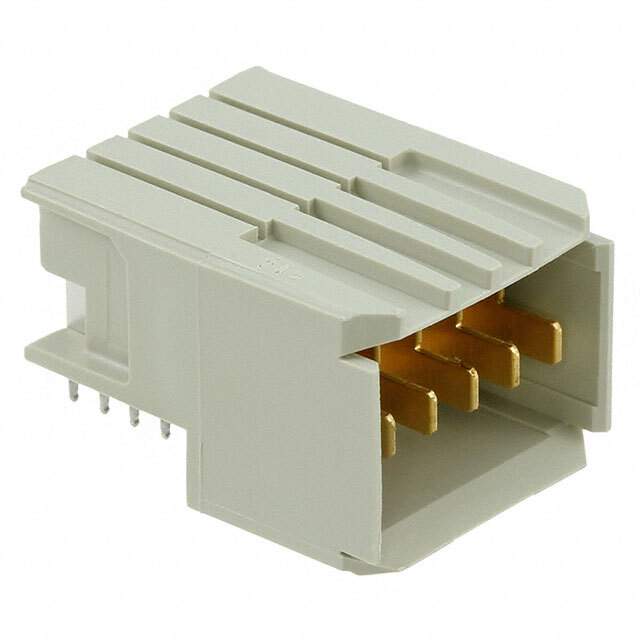

Part No 5646955-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER BLADE PWR 5P EDGE MT / 5 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Gray Blade Power
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Usage Backplane
Connector Type Header, Male Blades
Connector Style Blade Power
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 5 Power
Features Board Guide
Contact Finish Gold or Gold-Palladium
Color Gray
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 250V
Base Product Number 5646955
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A121629,5646955-1-ND
Standard Package 31
Win Source Part Number 1334385-5646955-1
Ultra Librarian 3D Model Ultra Librarian 5646955-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334385-5646955-1 is a connector with a board guide feature.

  • Category: specialized backplane connectors
  • Packaging: tube form
  • Color: gray
  • Type: male blade header
  • Termination: press-fit
  • Contact Finish: gold or gold-palladium
  • Style: blade power connector
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 31
  • Mounting: board edge, through hole, right angle
  • Usage: backplane connector
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
