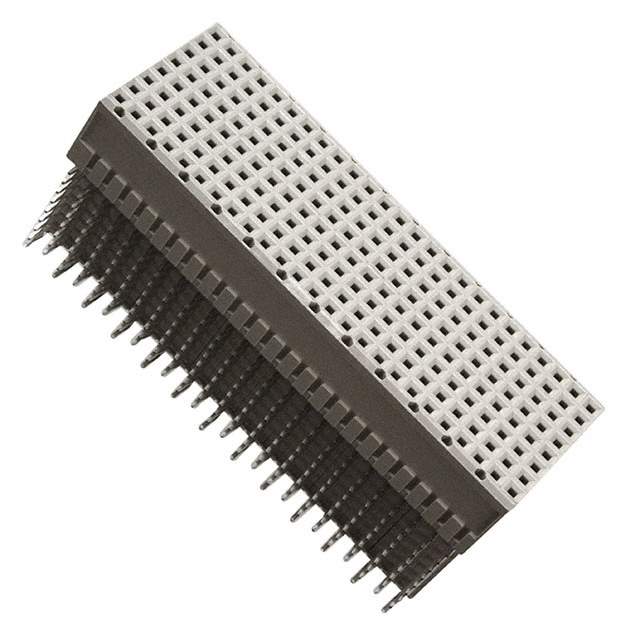

5646487-1 Real Image
Same model may have multiple batches, images only for reference.

5646487-1

Part No 5646487-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 200POS 2MM PRESS-FIT / 200 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Hard Metric, Standard
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Type Receptacle, Female Sockets
Connector Style E 25
Number of Positions 200
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Upper Shield
Base Product Number 5646487
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -5646487-1-SI,A97869,5646487-1-ND,56464871
Standard Package 10
Win Source Part Number 1024295-5646487-1
Ultra Librarian 3D Model Ultra Librarian 5646487-1 CAD Model

Description

The Z-PACK 5646487-1 from TE Connectivity AMP Connectors is a hard metric, standard backplane connector that has a series of Z-PACK.

  • Positions: 200
  • Pitch: 0.079" (2.00mm)
  • Feature: Upper Shield
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Rows: Eight
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Finish Thickness: 30.0µin (0.76µm)
  • Package: Tube
  • Standard Package: 10
  • Connector Style: E 25
  • Voltage Rating: 750Vrms
  • Mounting: Through Board Edge, Through Hole, Right Angle
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
