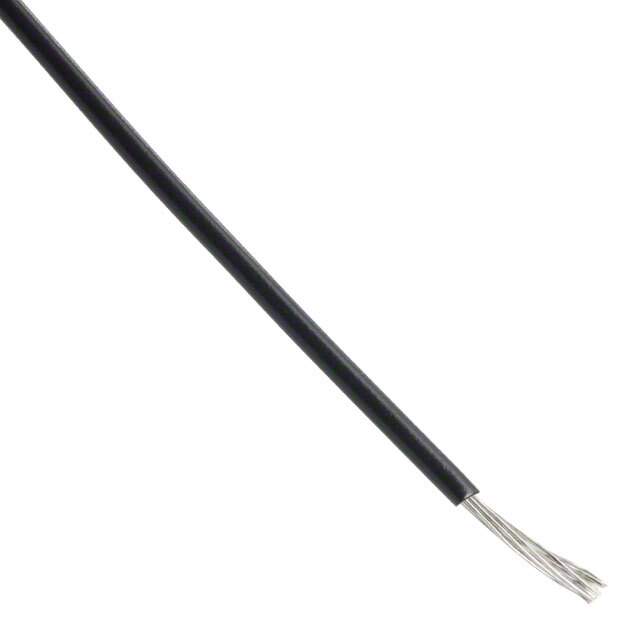

55A0111-16-0 Real Image
Same model may have multiple batches, images only for reference.

55A0111-16-0

Part No 55A0111-16-0
Manufacturer TE Connectivity
Catalog Single Conductor Cables (Hook - UpWire)
Description DC Power Cords Sgl Mld End Lead Asy LGH-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 600
Color Black
Conductor Diameter 1.4224 mm
Conductor Material Copper, Tin
ELV Compliant
Halogen Free Not Halogen Free
Insulation Material ETFE
Insulation Thickness 127 µm
Lead Free Not Applicable
Length 100 m
Maximum Operating Temperature 150 °C
Max Voltage Rating (AC) 600 V
Min Operating Temperature -65 °C
Mount Cable
Number of Conductors 1
Number of Strands 19
Outside Diameter 1.73 mm
Radiation Hardening No
RoHS Compliant
Shielding Unshielded
Strand Size 29 AWG
Voltage Rating 600 V
Voltage Rating (AC) 600 V
Voltage Rating (DC) 600 V
Wire/Cable Color Black
Wire/Cable Diameter 1.73 mm
Wire/Cable Gauge 16 AWG
Win Source Part Number 1034310-55A0111-16-0
Categories Single Conductor Cables(Hook - UpWire)
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 55A0111-16-0 CAD Model

Description

TE Connectivity 1034310-55A0111-16-0 is a single conductor cable with a voltage rating of 600 V.

  • Voltage Rating: 600 V
  • Shielding: unshielded
  • Length: 100 m
  • Mounting: SMD (SMT)
  • Insulation Material: ETFE
  • Conductor Material: copper and tin
  • Wire/Cable Gauge: 16 AWG
  • Wire/Cable Diameter: 1.73 mm
  • Outside Diameter: 1.73 mm
  • Maximum Operating Temperature: 150 °C
  • RoHS Compliant: Yes
  • Application: hook-up wire
