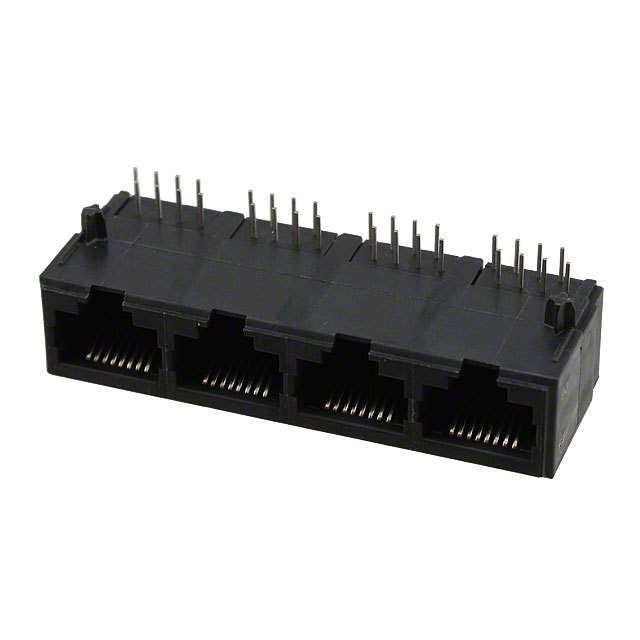

5557562-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5557562-1

Part No 5557562-1
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A UNSHLD
Datasheet
5557562-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 4
Number of Rows 1
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat4
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polyamide (PA), Nylon
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 764026-5557562-1
Popularity Medium
Supply and Demand Status Limited
Family Name 5557562
Introduction Date June 03, 2009
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5557562-1 CAD Model

Description

{"ProductId":702404,"FormattedDescription":"

The TE Connectivity AMP Connectors 764026-5557562-1 is a jack connector with a 90-degree angle (right) orientation and four ports.

  • Mounting: Through-hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 50μin (1.27μm)
  • Housing Material: Polyamide (PA), Nylon
  • Contact Material: Phosphor Bronze
  • Board Guide: Yes
  • Shielding: Unshielded
  • Ratings: Cat4
  • Contacts: 8p8c (RJ45, Ethernet)
  • Applications: Networking, Telecommunications, Industrial Equipment
  • Country of Origin: China
  • Estimated EOL Date: 2026
"}
